دست فنر پارابولیک چرخ جلو DAF
OEM Code : 1426358, 1426361
Pproduct introduction

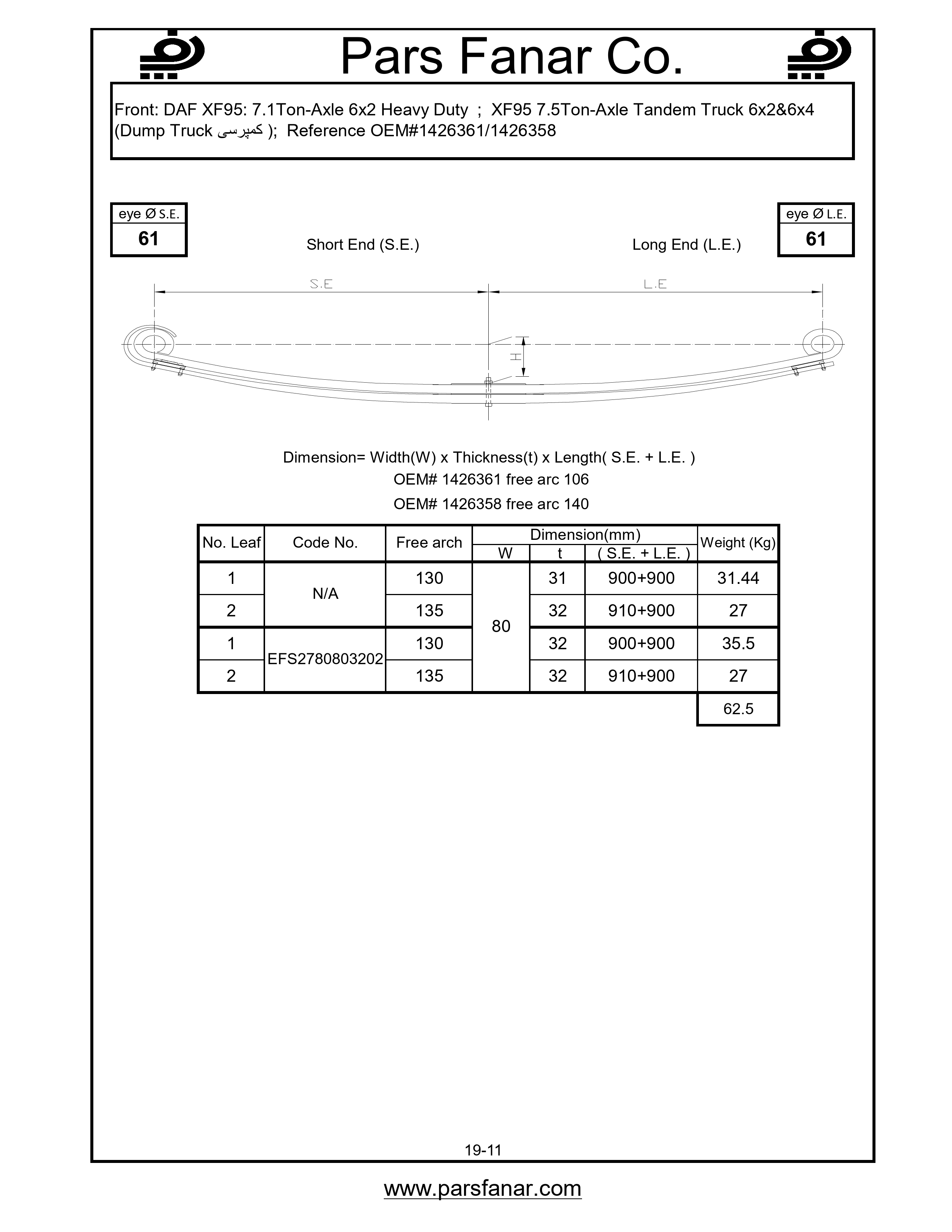

Front: DAF XF95: 7.1Ton-Axle 6×2 Heavy Duty ; XF95 7.5Ton-Axle Tandem Truck 6×2&6×4 (Dump Truck کمپرسی )
Reference OEM#1426361/1426358
Special properties
Technical Specifications
| Vehicle type | |
|---|---|
| Installation location | |
| OEM code | |
| Width (W) of flat spring | |
| Thickness (T) of flat spring | |
| The number of main layers (M) of the flat spring | |
| The length of the short edge (SE) of the flat spring | |
| The length of the long edge (LE) of the flat spring | |
| The eye diameter of the short edge of the flat spring | |
| The eye diameter of the long edge of the flat spring | |
| Free arc (H) flat spring | 106 |
| Name of the vehicle/cabin/trailer | DAF XF95 7.5Ton-Axle Tandem Truck 6×2&6×4 (Dump Truck کمپرسی ), DAF XF95: 7.1Ton-Axle 6×2 Heavy Duty |
