دست فنر پارابولیک چرخ جلو Mercedes Benz
OEM Code : 6203200202
Pproduct introduction
Front: Mercedes Benz 1633/1636/1748/1928 (L/LS/S), 1635 L/LS/K/S, 1638/ 1644/ 1735/ 1933/ 1935/ 1936/1938/1944/1948 (LS/S), 1929 L, 2028/2033/2035/2036 (LS 6×2/4), 2228/2236/2238 (L/S 6×2/4), 2429/2435/2448 (L/LS/S 6×2/4)
Reference OEM# 6203200202
Special properties

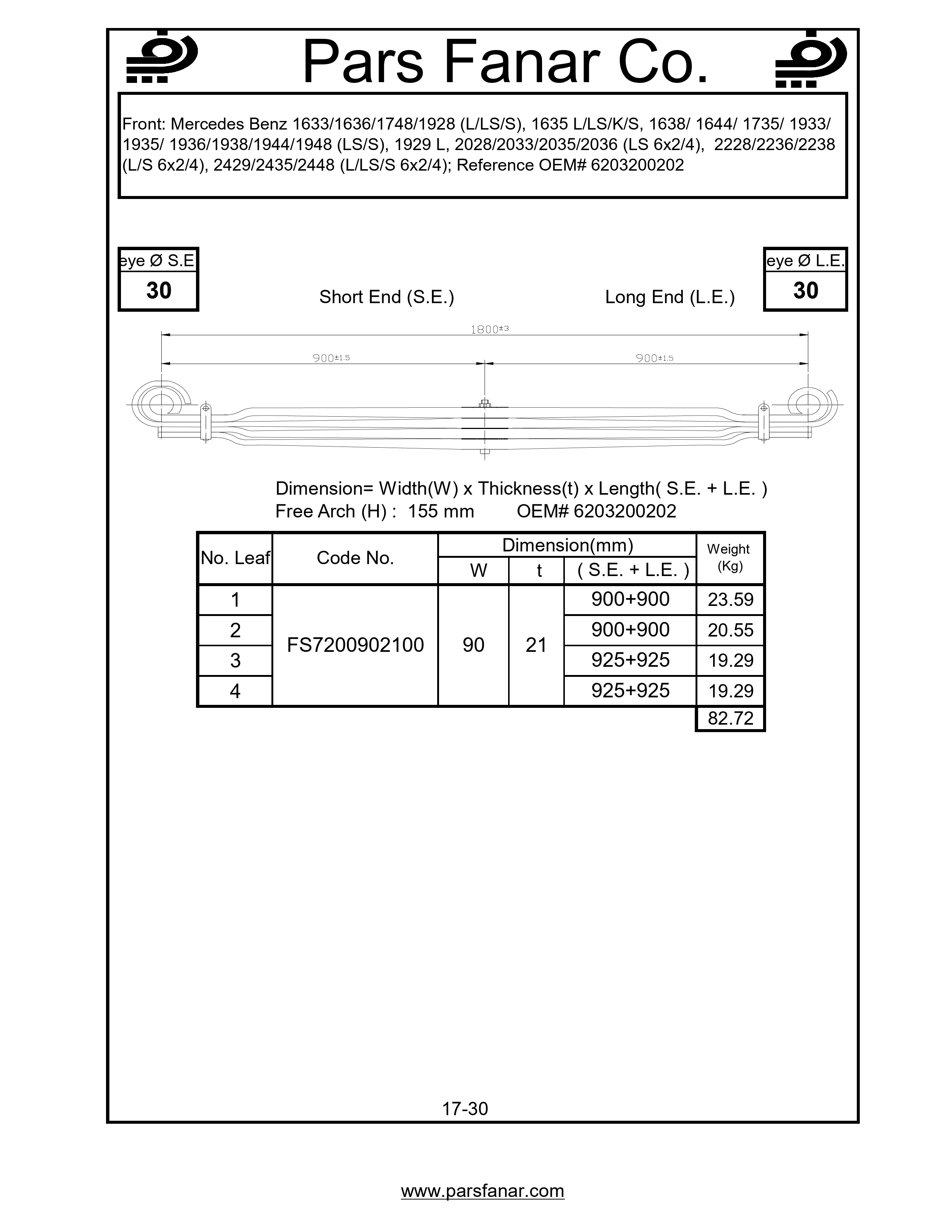

Technical Specifications
| Vehicle type | |
|---|---|
| Installation location | |
| OEM code | |
| Width (W) of flat spring | |
| Thickness (T) of flat spring | |
| The number of main layers (M) of the flat spring | |
| The length of the short edge (SE) of the flat spring | |
| The length of the long edge (LE) of the flat spring | |
| The eye diameter of the short edge of the flat spring | |
| The eye diameter of the long edge of the flat spring | |
| Free arc (H) flat spring | 155 |
| Name of the vehicle/cabin/trailer | 1635 L/LS/K/S, 1638/ 1644/ 1735/ 1933/ 1935/ 1936/1938/1944/1948 (LS/S), 1929 L, 2028/2033/2035/2036 (LS 6×2/4), 2228/2236/2238 (L/S 6×2/4), 2429/2435/2448 (L/LS/S 6×2/4), Mercedes Benz 1633/1636/1748/1928 (L/LS/S) |
