دست فنر پارابولیک چرخ جلو Mercedes Benz
OEM Code : 6203200302
Pproduct introduction
Front: Mercedes Benz 1840, 1922 (AK/S), 1928/1929/1933/1935/1936/1938/1944/ (L/LS/S), 1948, 2028/2033/2035/2036/2228 (LS 6×2-6×4), 2228/2233/2236/2244/2429/2435 (L/S 6×2-6×4) 2448 L 6×2
Reference OEM#6203200302
Special properties

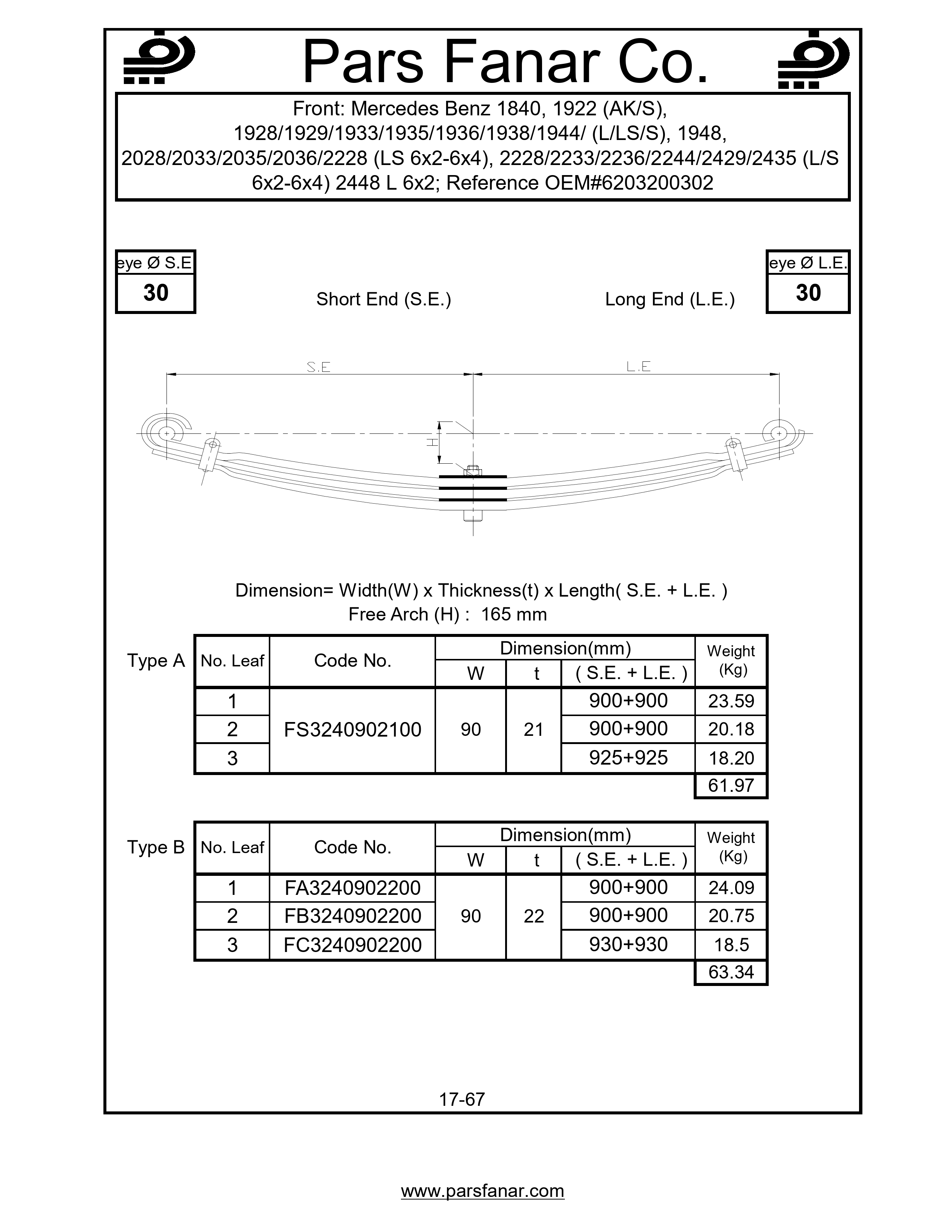

Technical Specifications
| Vehicle type | |
|---|---|
| Installation location | |
| OEM code | |
| Width (W) of flat spring | |
| Thickness (T) of flat spring | |
| The number of main layers (M) of the flat spring | |
| The length of the short edge (SE) of the flat spring | |
| The length of the long edge (LE) of the flat spring | |
| The eye diameter of the short edge of the flat spring | |
| The eye diameter of the long edge of the flat spring | |
| Free arc (H) flat spring | 165 |
| Name of the vehicle/cabin/trailer | 1922 (AK/S), 1928/1929/1933/1935/1936/1938/1944/ (L/LS/S), 1948, 2028/2033/2035/2036/2228 (LS 6×2-6×4), 2228/2233/2236/2244/2429/2435 (L/S 6×2-6×4) 2448 L 6×2, Mercedes Benz 1840 |
