دست فنر پارابولیک چرخ جلو Mercedes Benz Atego 1223
OEM Code : 9743202002, 9743202402, 9743202602, 9743202802, 9743203002, 9743204002, 9743204402, 9743204502
Pproduct introduction
Front: Mercedes Benz Atego 1223 5.1 Ton Axle
OEM# 9743202402/9743204402
Atego 1228 4.4 Ton Front Axle
OEM#9743204002/9743202002
Atego 1223/1228 4.7 Ton Axle
Atego 1518/ 1523/1528/ 5.6 Ton Axle
OEM#9743203002/ 9743202602/ 9743204502
Atego 1518/1523/1528 6 Ton Axle
OEM# 9743202802
Special properties

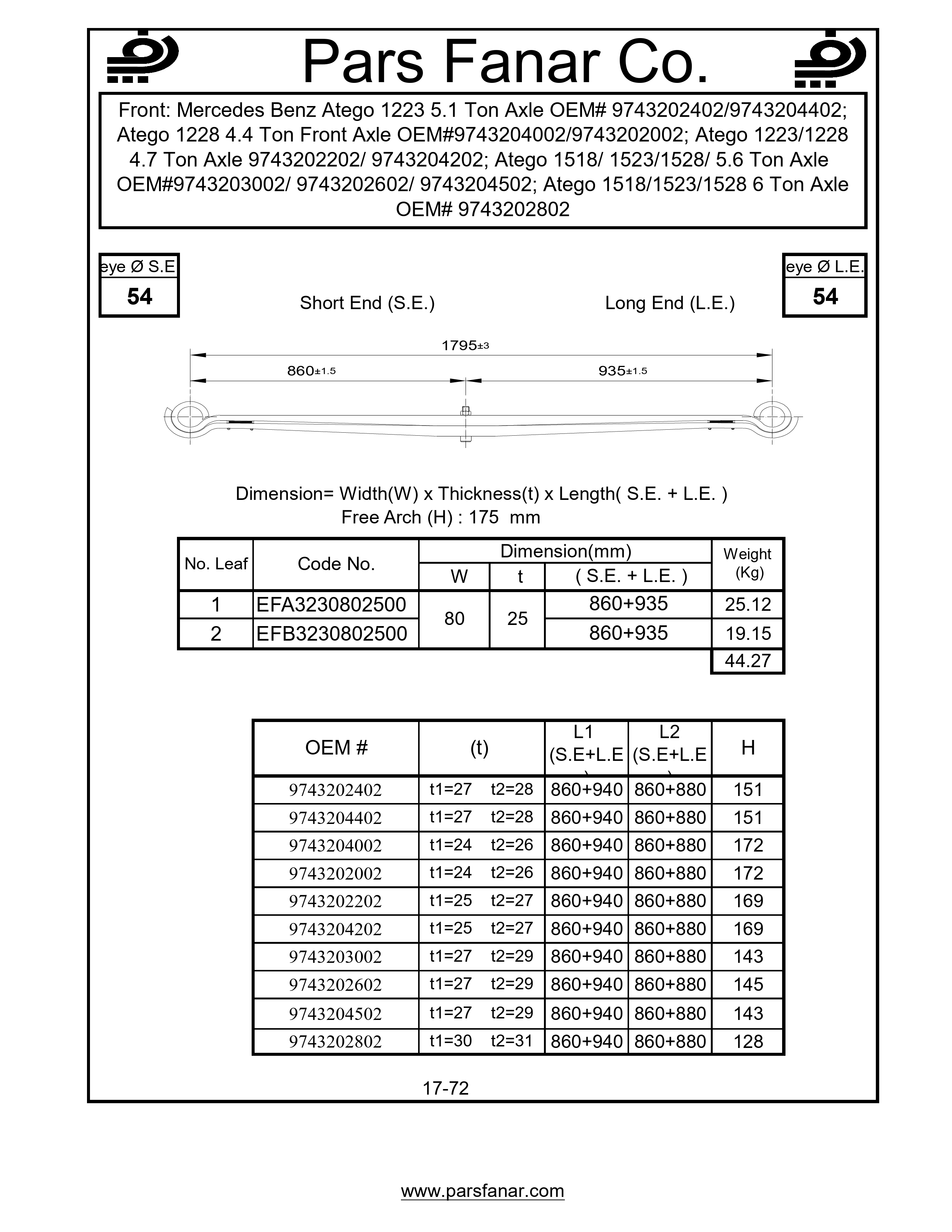

Technical Specifications
| Vehicle type | |
|---|---|
| Installation location | |
| OEM code | 9743202002, 9743202402, 9743202602, 9743202802, 9743203002, 9743204002, 9743204402, 9743204502 |
| Width (W) of flat spring | |
| Thickness (T) of flat spring | |
| The number of main layers (M) of the flat spring | |
| The length of the short edge (SE) of the flat spring | |
| The length of the long edge (LE) of the flat spring | |
| The eye diameter of the short edge of the flat spring | |
| The eye diameter of the long edge of the flat spring | |
| Free arc (H) flat spring | 175 |
| Name of the vehicle/cabin/trailer | Mercedes Benz Atego 1223 5.1 Ton Axle, Mercedes Benz Atego 1223/1228 4.7 Ton Axle, Mercedes Benz Atego 1228 4.4 Ton Front Axle |
