دست فنر پارابولیک چرخ عقب Land Rover/IVECO Massif
OEM Code : 162787, 162788
Pproduct introduction

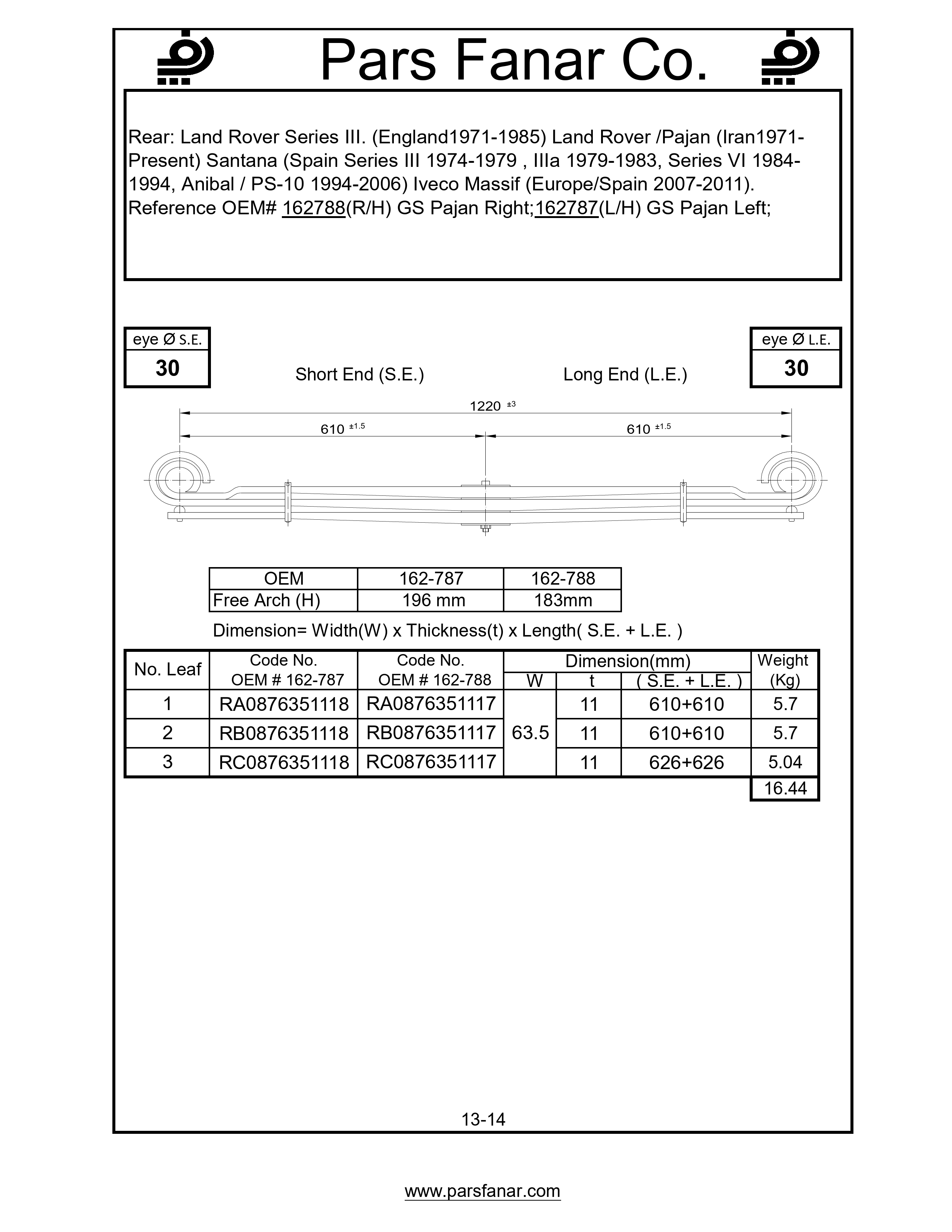

Rear: Land Rover Series III. (England1971-1985) Land Rover /Pajan (Iran1971-Present) Santana (Spain Series III 1974-1979 , IIIa 1979-1983, Series VI 1984-1994, Anibal / PS-10 1994-2006) Iveco Massif (Europe/Spain 2007-2011)
Reference OEM# 162788(R/H) GS Pajan Right;162787(L/H) GS Pajan Left
Special properties
Technical Specifications
| Vehicle type | |
|---|---|
| Installation location | |
| OEM code | |
| Width (W) of flat spring | |
| Thickness (T) of flat spring | |
| The number of main layers (M) of the flat spring | |
| The length of the short edge (SE) of the flat spring | |
| The length of the long edge (LE) of the flat spring | |
| The eye diameter of the short edge of the flat spring | |
| The eye diameter of the long edge of the flat spring | |
| Free arc (H) flat spring | 196 |
| Name of the vehicle/cabin/trailer | IVECO Massif, Land Rover /Pajan/Santana, Land Rover Series III |
