دست فنر پارابولیک چرخ عقب Mercedes Benz Actros
OEM Code : 9483200705, 9483201705, 9483201905
Pproduct introduction

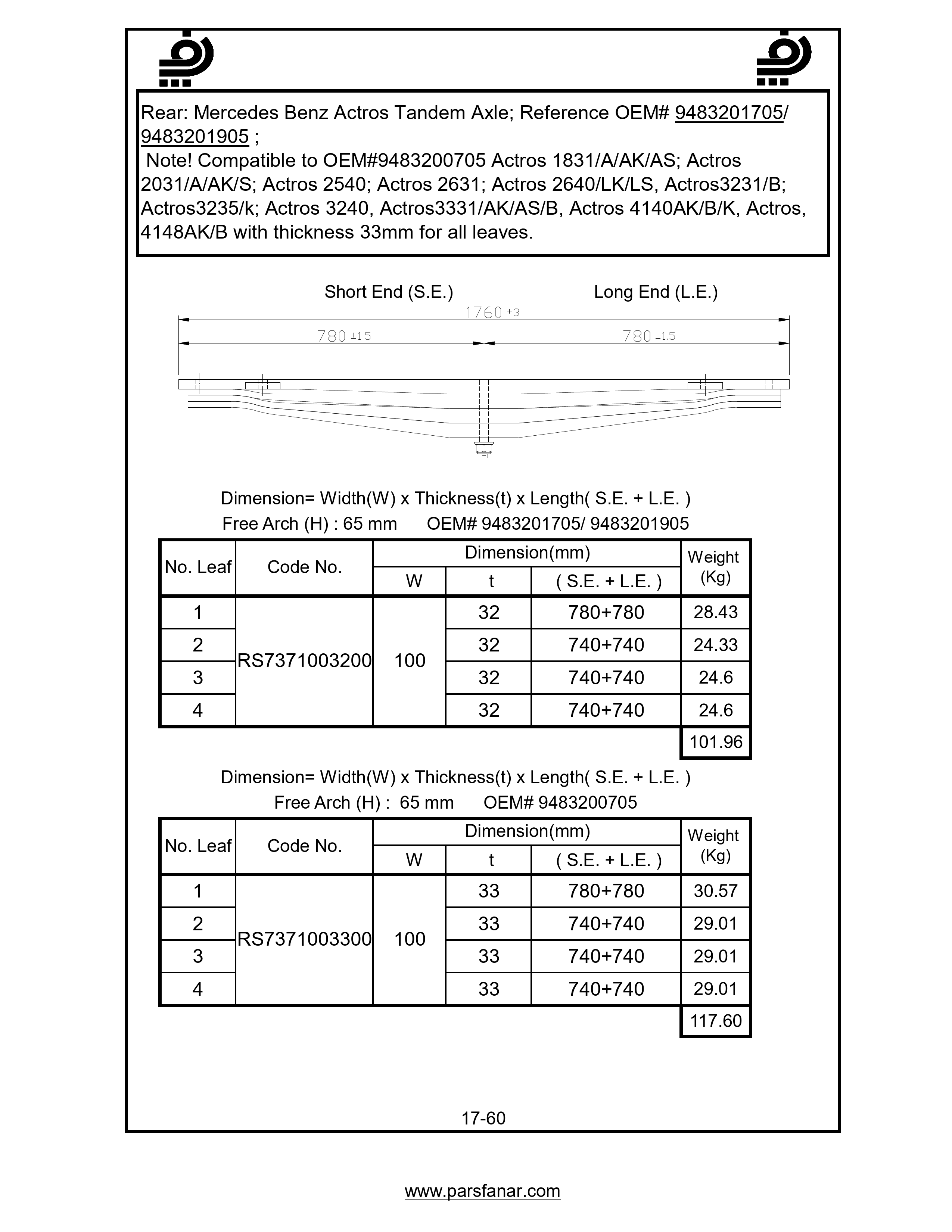

Rear: Mercedes Benz Actros Tandem Axle
Reference OEM# 9483201705/ 9483201905
Compatible to OEM#9483200705 Actros 1831/A/AK/AS; Actros 2031/A/AK/S; Actros 2540; Actros 2631; Actros 2640/LK/LS, Actros3231/B; Actros3235/k; Actros 3240, Actros3331/AK/AS/B, Actros 4140AK/B/K, Actros, 4148AK/B with thickness 33mm for all leaves
Special properties
Technical Specifications
| Vehicle type | |
|---|---|
| Installation location | |
| OEM code | |
| Width (W) of flat spring | |
| Thickness (T) of flat spring | |
| The number of main layers (M) of the flat spring | |
| The length of the short edge (SE) of the flat spring | |
| The length of the long edge (LE) of the flat spring | |
| Free arc (H) flat spring | 65 |
| Name of the vehicle/cabin/trailer |
