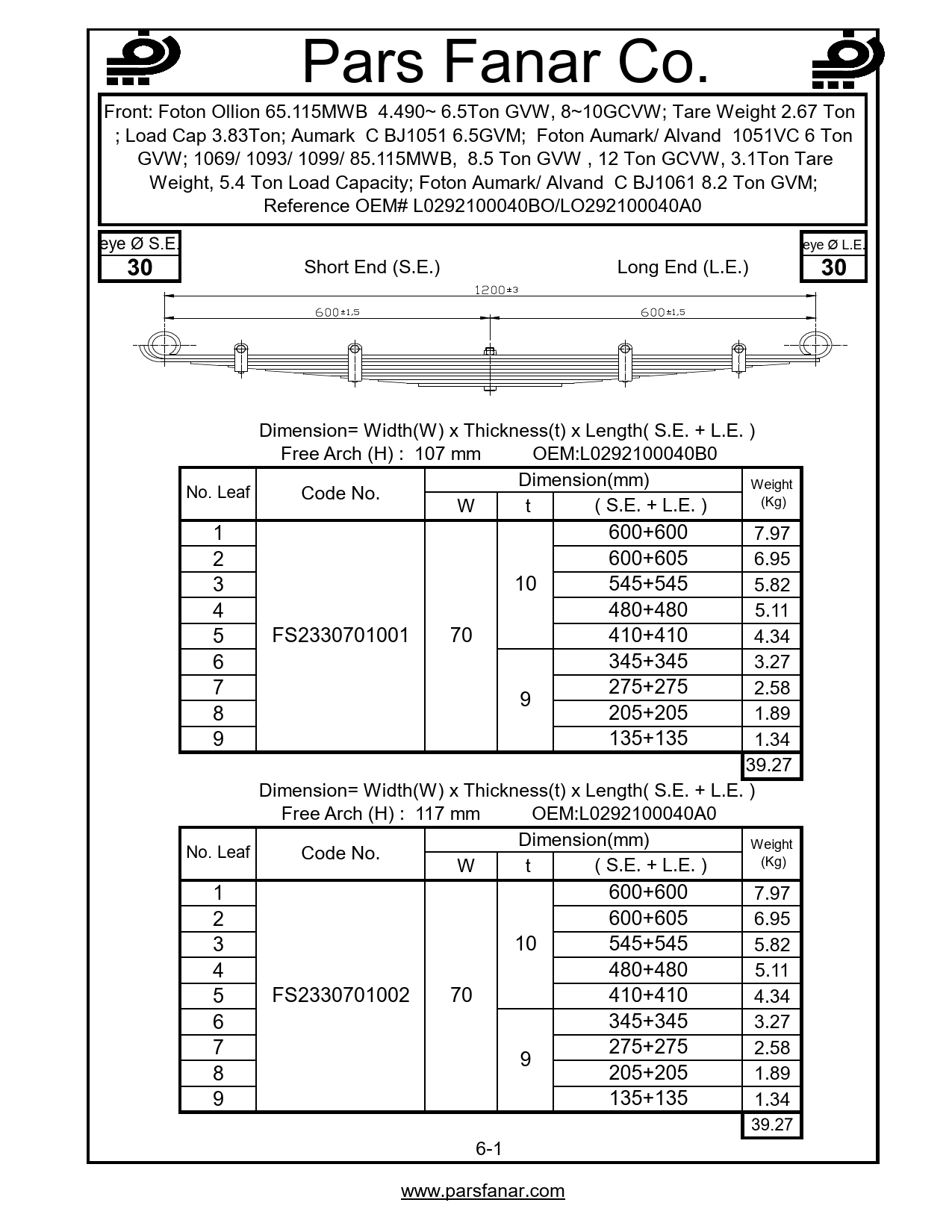

Technical Specifications
| Vehicle type | |
|---|---|
| Installation location | |
| OEM code | |
| Width (W) of flat spring | |
| Thickness (T) of flat spring | |
| The number of main layers (M) of the flat spring | |
| The length of the short edge (SE) of the flat spring | |
| The length of the long edge (LE) of the flat spring | |
| The eye diameter of the short edge of the flat spring | |
| The eye diameter of the long edge of the flat spring | |
| Free arc (H) flat spring | 117 |
| Name of the vehicle/cabin/trailer | Foton 1069, Foton 1093, Foton 1099, Foton 12 Ton GCVW, Foton 3.1Ton Tare Weight, Foton 5.4 Ton Load Capacity, Foton 85.115MWB 8.5 Ton GVW, Foton Alvand 1051VC 6 Ton GVW, Foton Alvand C BJ1061 8.2 Ton GVM, Foton Aumark, Foton Aumark C BJ1051 6.5GVM, Foton GVW, Foton Load Cap 3.83Ton, Foton Ollin 65.115MWB 4.490~ 6.5Ton, Foton Tare Weight 2.67 Ton |
