دست فنر چرخ جلو International/ Navistar Paystar suspension
OEM Code : 543847C91, 544187C91
Pproduct introduction

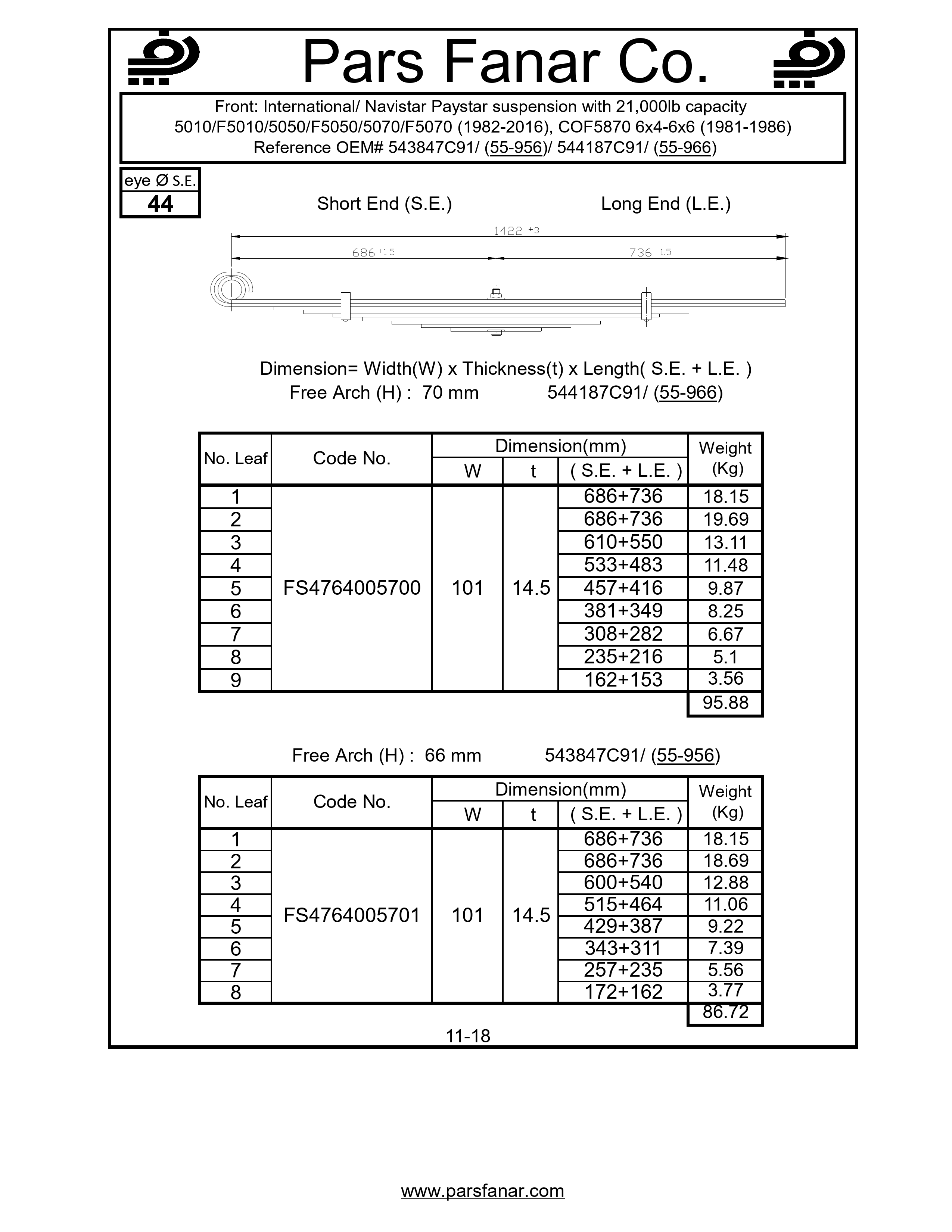

Front: International/ Navistar Paystar suspension with 21,000lb capacity 5010/F5010/5050/F5050/5070/F5070 (1982-2016), COF5870 6×4-6×6 (1981-1986)
Reference OEM# 543847C91/ (55-956)/ 544187C91/ (55-966)
Special properties
Technical Specifications
| Vehicle type | |
|---|---|
| Installation location | |
| OEM code | |
| Aftermarket code | 55-956, 55-966 |
| Width (W) of flat spring | |
| Thickness (T) of flat spring | |
| The number of main layers (M) of the flat spring | |
| The length of the short edge (SE) of the flat spring | |
| The length of the long edge (LE) of the flat spring | |
| The eye diameter of the short edge of the flat spring | |
| Free arc (H) flat spring | 70 |
| Name of the vehicle/cabin/trailer | 000lb capacity 5010/F5010/5050/F5050/5070/F5070 (1982-2016), COF5870 6×4-6×6 (1981-1986), International/Navistar Paystar suspension with 21 |
