دست فنر چرخ جلو IVECO 320 N66
OEM Code : 4207 0671 UB 5014-04
Pproduct introduction

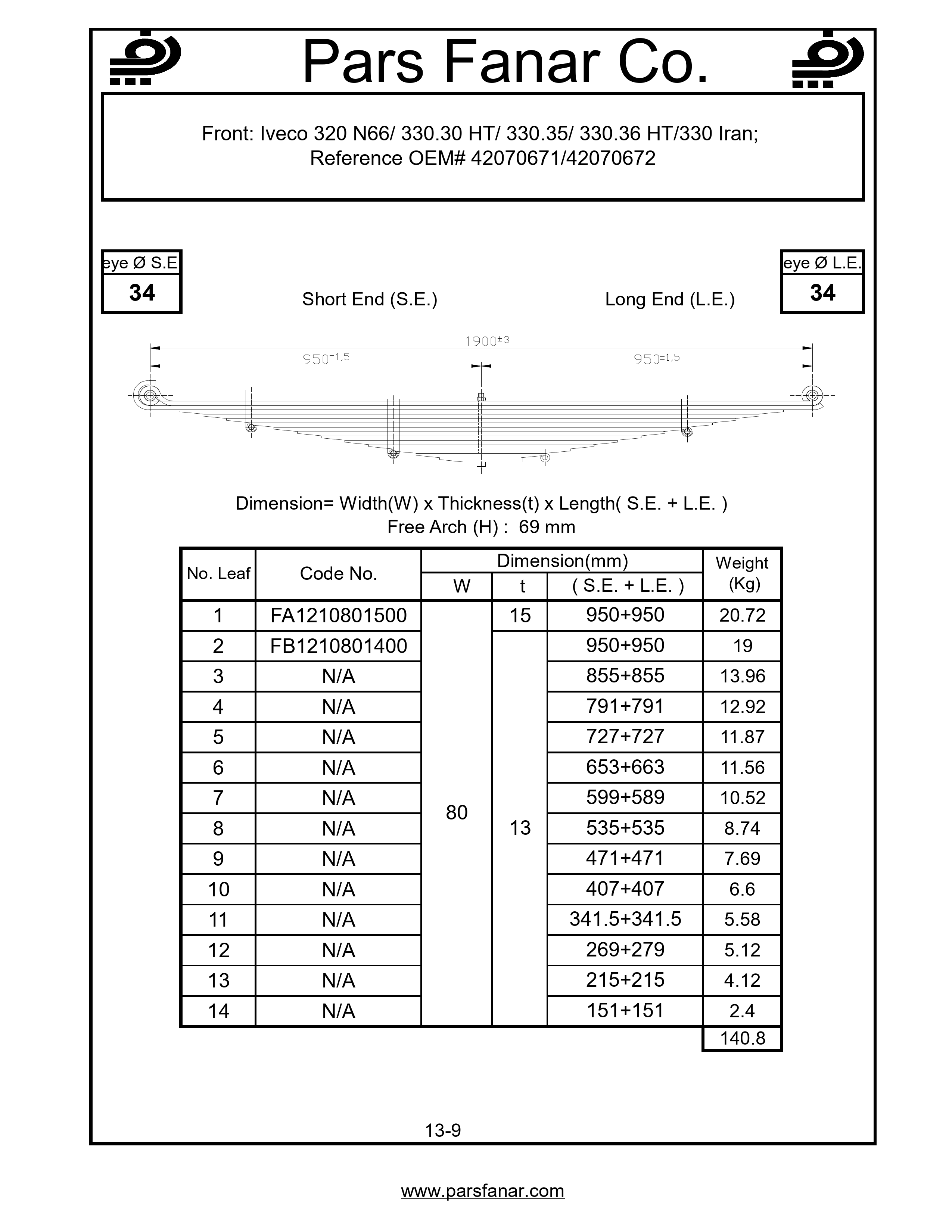

Front: IVECO 320 N66/ 330.30 HT/ 330.35/ 330.36 HT/330 Iran
Reference OEM# 4207 0671 UB 5014-04
Special properties
Technical Specifications
| Vehicle type | |
|---|---|
| Installation location | |
| OEM code | |
| Width (W) of flat spring | |
| Thickness (T) of flat spring | |
| The number of main layers (M) of the flat spring | |
| The length of the short edge (SE) of the flat spring | |
| The length of the long edge (LE) of the flat spring | |
| The eye diameter of the short edge of the flat spring | |
| The eye diameter of the long edge of the flat spring | |
| Free arc (H) flat spring | 69 |
| Name of the vehicle/cabin/trailer |
