دست فنر چرخ جلو IVECO Mini Bus 60.9
OEM Code : 8559528, 8590987, 8590988, 8590989
Pproduct introduction

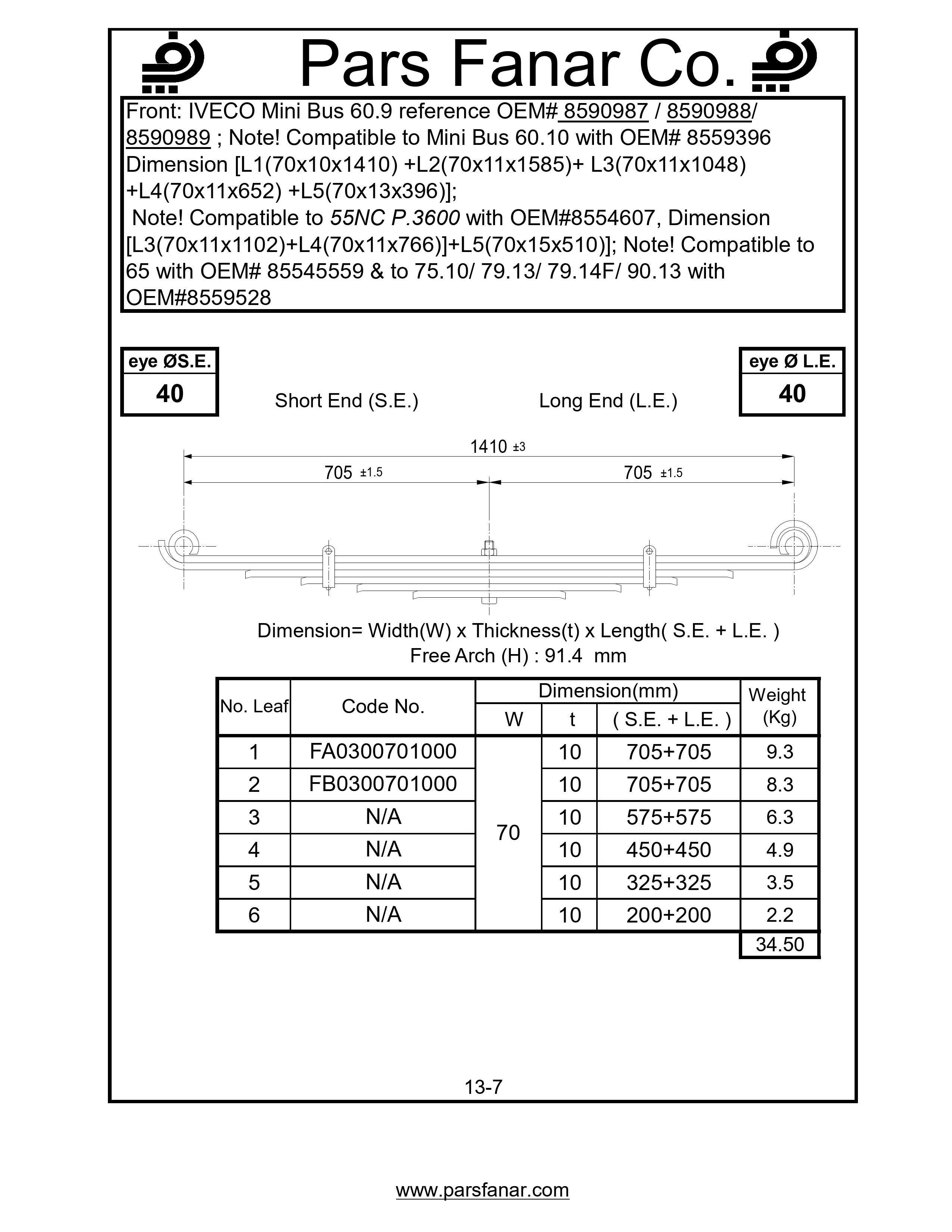

Front: IVECO Mini Bus 60.9
Reference OEM# 8590987 / 8590988/ 8590989 ; Note! Compatible to Mini Bus 60.10 with OEM# 8559396 Dimension [L1(70x10x1410) +L2(70x11x1585)+ L3(70x11x1048) +L4(70x11x652) +L5(70x13x396)]
Note: Compatible to 55NC P.3600 with OEM#8554607, Dimension [L3(70x11x1102)+L4(70x11x766)]+L5(70x15x510)]; Note! Compatible to 65 with OEM# 85545559 & to 75.10/ 79.13/ 79.14F/ 90.13 with OEM#8559528
Special properties
Technical Specifications
| Vehicle type | |
|---|---|
| Installation location | |
| OEM code | |
| Width (W) of flat spring | |
| Thickness (T) of flat spring | |
| The number of main layers (M) of the flat spring | |
| The length of the short edge (SE) of the flat spring | |
| The length of the long edge (LE) of the flat spring | |
| The eye diameter of the short edge of the flat spring | |
| The eye diameter of the long edge of the flat spring | |
| Free arc (H) flat spring | 91.4 |
| Name of the vehicle/cabin/trailer |
