دست فنر چرخ جلو Mercedes Benz 1921
OEM Code : 3493200102, 3953200002
Pproduct introduction

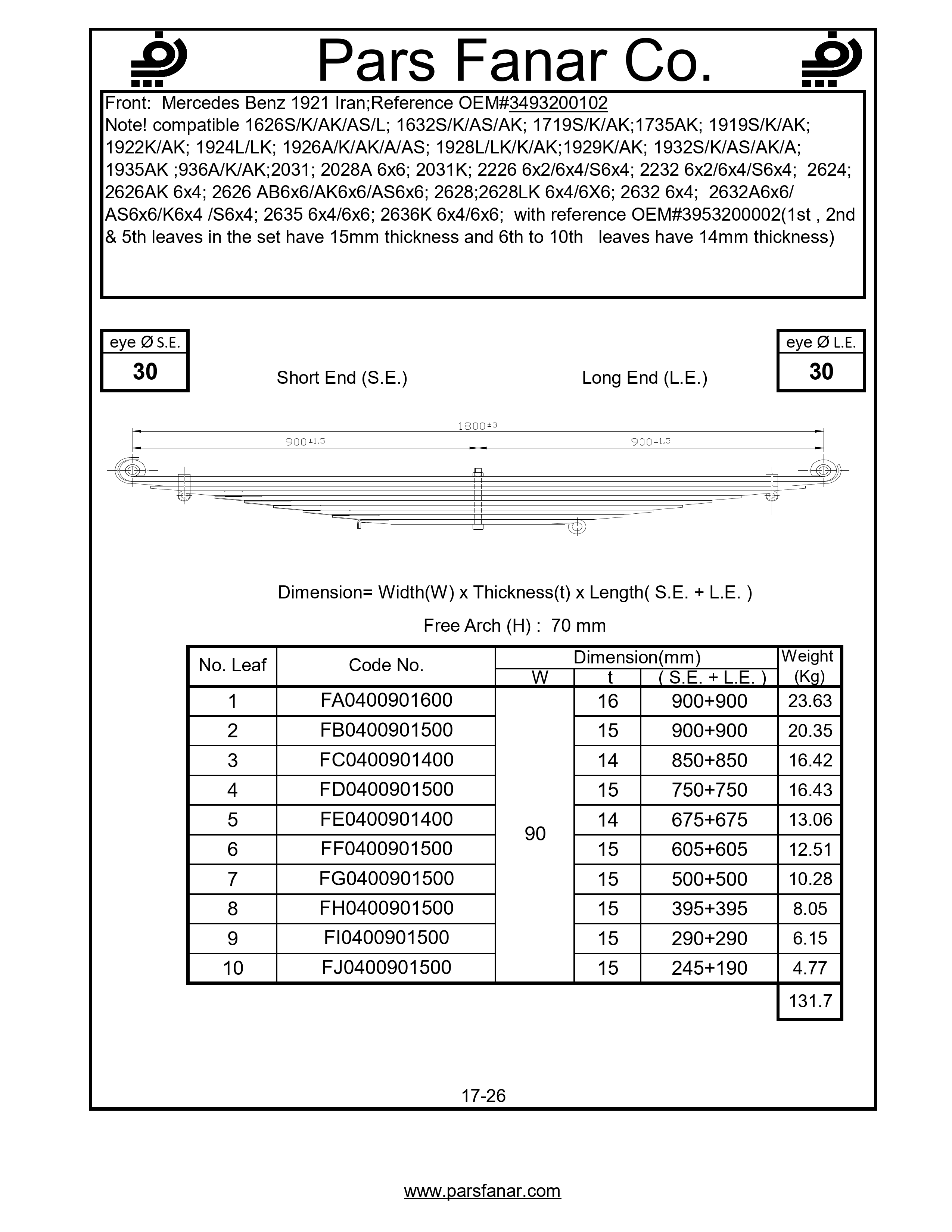

Front: Mercedes Benz 1921 Iran
Reference OEM#3493200102
Note: compatible 1626S/K/AK/AS/L; 1632S/K/AS/AK; 1719S/K/AK;1735AK; 1919S/K/AK; 1922K/AK; 1924L/LK; 1926A/K/AK/A/AS; 1928L/LK/K/AK;1929K/AK; 1932S/K/AS/AK/A; 1935AK ;936A/K/AK;2031; 2028A 6×6; 2031K; 2226 6×2/6×4/S6x4; 2232 6×2/6×4/S6x4; 2624; 2626AK 6×4; 2626 AB6x6/AK6x6/AS6x6; 2628;2628LK 6×4/6X6; 2632 6×4; 2632A6x6/ AS6x6/K6x4 /S6x4; 2635 6×4/6×6; 2636K 6×4/6×6; with reference OEM#3953200002(1st , 2nd & 5th leaves in the set have 15mm thickness and 6th to 10th leaves have 14mm thickness)
Special properties
Technical Specifications
| Vehicle type | |
|---|---|
| Installation location | |
| OEM code | |
| Width (W) of flat spring | |
| Thickness (T) of flat spring | |
| The number of main layers (M) of the flat spring | |
| The length of the short edge (SE) of the flat spring | |
| The length of the long edge (LE) of the flat spring | |
| The eye diameter of the short edge of the flat spring | |
| The eye diameter of the long edge of the flat spring | |
| Free arc (H) flat spring | 70 |
| Name of the vehicle/cabin/trailer |
