دست فنر چرخ جلو Mercedes Benz 2629
OEM Code : 3953200002
Pproduct introduction
Front: Mercedes Benz 2629 (Iran), 1626AK/AS/K/L/S, 1632AS/AK/K/S, 1719 AK/K/S 1735AK, 1922 AK/K, 1924L/LK, 1926 A/K/AK/AS/S, 1928 AK/L/LK/K, 1929AK/K, 1932A/AK/AS/K/S, 1935AK, 1936A/AK/K, 2226 S6X2/4, 2232 6X2 6X4 S6X4, 2624LK 6X4, 2626AB/AS/AK 6X6, 2628 2629 6X4/6, 2632 6X4, 2632A/AS/K 6×4/6; 2635 6X4/6, 2636K 6X4/6
Reference OEM#3953200002
Special properties

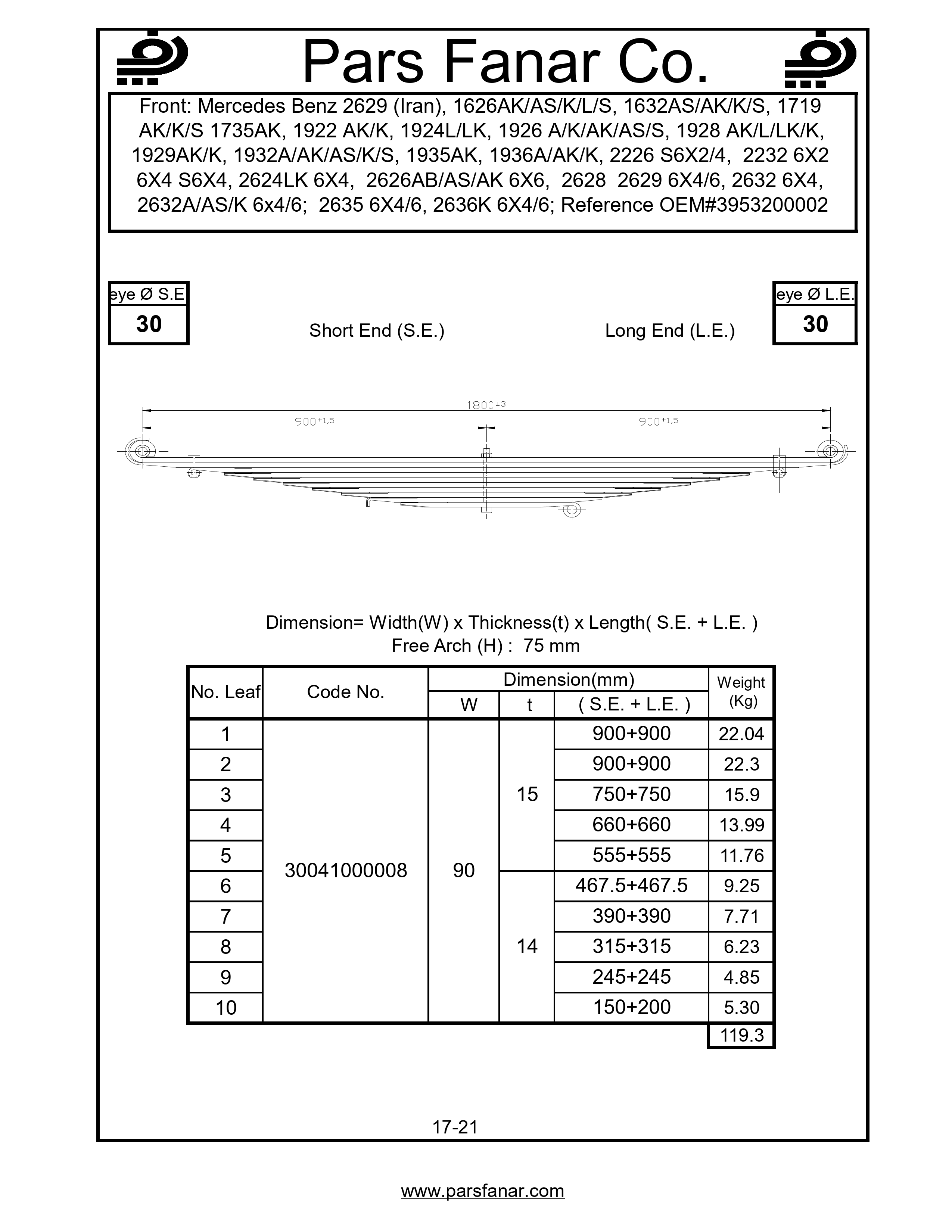

Technical Specifications
| Vehicle type | |
|---|---|
| Installation location | |
| OEM code | |
| Width (W) of flat spring | |
| Thickness (T) of flat spring | |
| The number of main layers (M) of the flat spring | |
| The length of the short edge (SE) of the flat spring | |
| The length of the long edge (LE) of the flat spring | |
| The eye diameter of the short edge of the flat spring | |
| The eye diameter of the long edge of the flat spring | |
| Free arc (H) flat spring | 75 |
| Name of the vehicle/cabin/trailer | 1626AK/AS/K/L/S, 1632AS/AK/K/S, 1719 AK/K/S 1735AK, 1922 AK/K, 1924L/LK, 1926 A/K/AK/AS/S, 1928 AK/L/LK/K, 1929AK/K, 1932A/AK/AS/K/S, 1935AK, 1936A/AK/K, 2226 S6X2/4, 2232 6X2 6X4 S6X4, 2624LK 6X4, 2626AB/AS/AK 6X6, 2628 2629 6X4/6, 2632 6X4, 2632A/AS/K 6×4/6; 2635 6X4/6, 2636K 6X4/6, Mercedes Benz 2629 (Iran) |
