دست فنر چرخ جلو Toyota Land Cruiser
OEM Code : 48110-60160, 48110-60170, 48110-60220, 48110-60410, 48110-60411, 48210-60380, 48210-60410, 48210-60650
Pproduct introduction

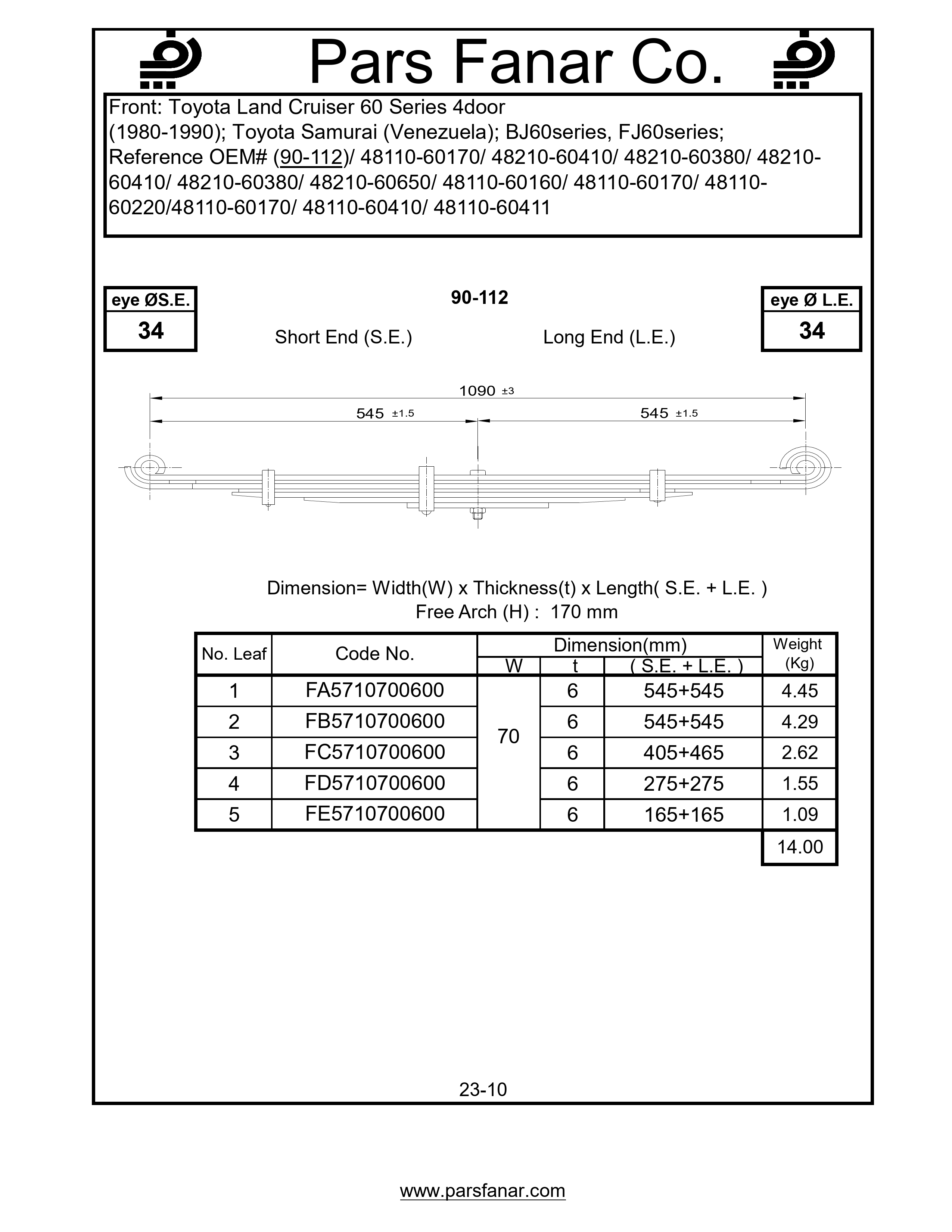

Front: Toyota Land Cruiser 60 Series 4door (1980-1990); Toyota Samurai (Venezuela); BJ60series, FJ60series
Reference OEM# (90-112)/ 48110-60170/ 48210-60410/ 48210-60380/ 48210-60410/ 48210-60380/ 48210-60650/ 48110-60160/ 48110-60170/ 48110-60220/48110-60170/ 48110-60410/ 48110-60411
Special properties
Technical Specifications
| Vehicle type | |
|---|---|
| Installation location | |
| OEM code | 48110-60160, 48110-60170, 48110-60220, 48110-60410, 48110-60411, 48210-60380, 48210-60410, 48210-60650 |
| Aftermarket code | 90-112 |
| Width (W) of flat spring | |
| Thickness (T) of flat spring | |
| The number of main layers (M) of the flat spring | |
| The length of the short edge (SE) of the flat spring | |
| The length of the long edge (LE) of the flat spring | |
| The eye diameter of the short edge of the flat spring | |
| The eye diameter of the long edge of the flat spring | |
| Free arc (H) flat spring | 170 |
| Name of the vehicle/cabin/trailer | FJ60series, Toyota Land Cruiser 60 Series 4door (1980-1990); Toyota Samurai (Venezuela); BJ60series |
