دست فنر چرخ عقب مزدا (Mazda)
OEM Code : E2TA5560CA, E3TZ5560G
Pproduct introduction

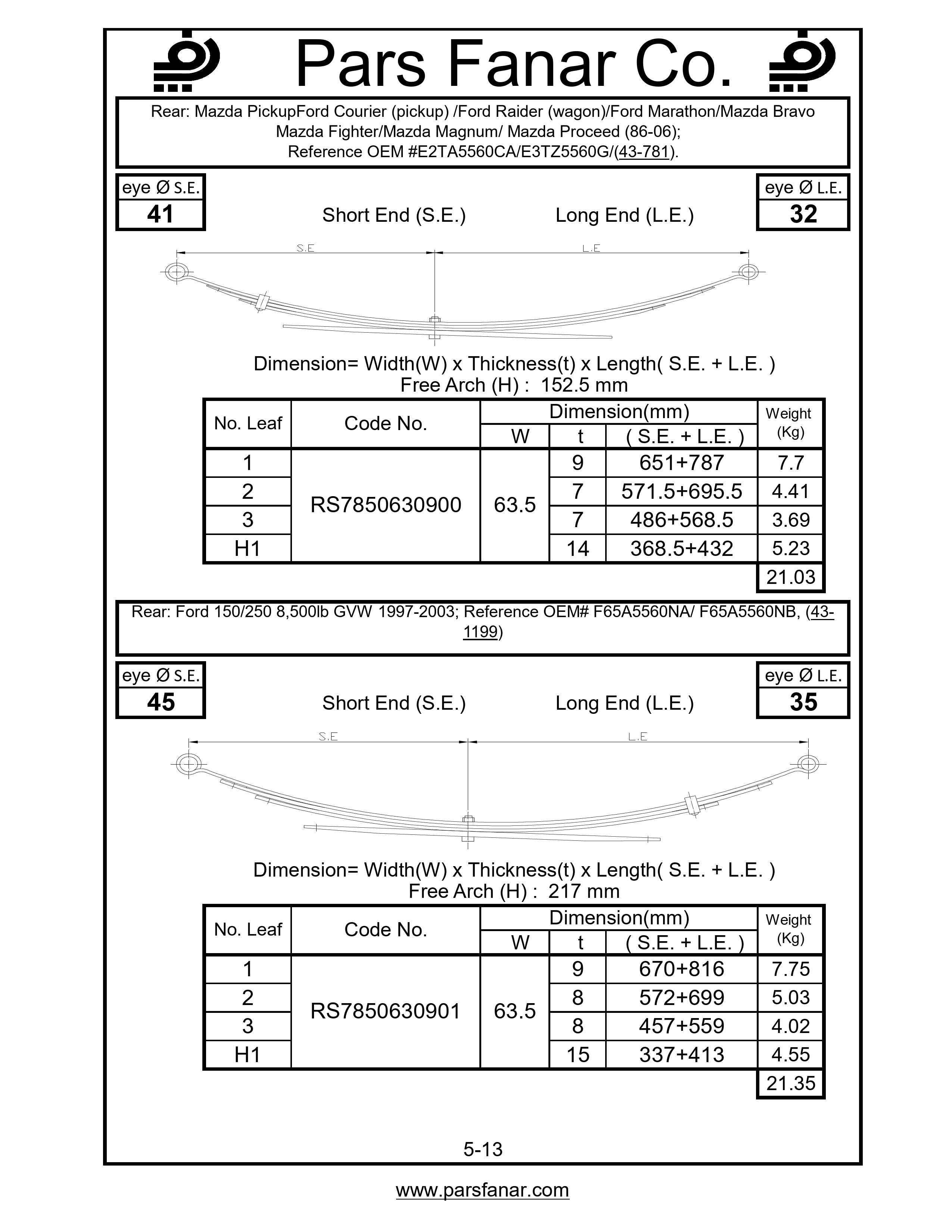

Rear: Mazda PickupFord Courier (pickup) /Ford Raider (wagon)/Ford Marathon/Mazda Bravo
Mazda Fighter/Mazda Magnum/ Mazda Proceed (86-06)
Reference OEM #E2TA5560CA/E3TZ5560G/(43-781)
Special properties
Technical Specifications
| Vehicle type | |
|---|---|
| Installation location | |
| OEM code | |
| Aftermarket code | 43-781 |
| Width (W) of flat spring | |
| Thickness (T) of flat spring | |
| The number of main layers (M) of the flat spring | |
| The number of auxiliary layers (H) of the flat spring | |
| The length of the short edge (SE) of the flat spring | |
| The length of the long edge (LE) of the flat spring | |
| The eye diameter of the short edge of the flat spring | |
| The eye diameter of the long edge of the flat spring | |
| Free arc (H) flat spring | 152.5 |
| Name of the vehicle/cabin/trailer | Ford Marathon, Ford Raider (wagon), Mazda Bravo, Mazda Pickup Ford Courier (pickup) |
