دست فنر چرخ عقب Ford Ranger

OEM Code : E47A5560UA, E4TZ5560C

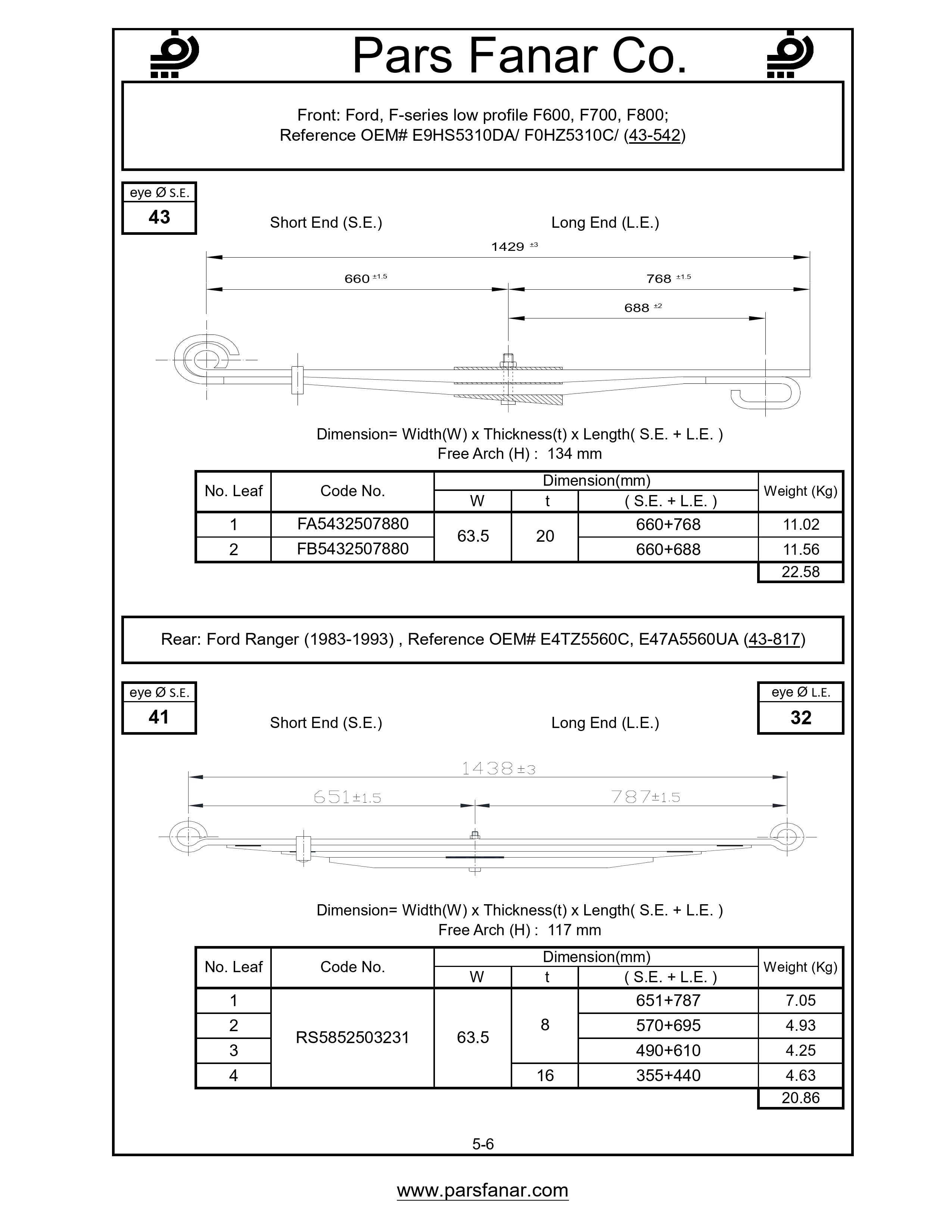

Rear: Ford Ranger (1983-1993)
Reference OEM# E4TZ5560C, E47A5560UA (43-817)

Vehicle type	Light Duty Vehicle
Installation location	Rear Axle
OEM code	E47A5560UA, E4TZ5560C
Aftermarket code	43-817
Width (W) of flat spring	63.5
Thickness (T) of flat spring	16
The number of main layers (M) of the flat spring	4
The length of the short edge (SE) of the flat spring	651
The length of the long edge (LE) of the flat spring	787
The eye diameter of the short edge of the flat spring	41
The eye diameter of the long edge of the flat spring	32
Free arc (H) flat spring	117
Name of the vehicle/cabin/trailer	Ford Ranger
