دست فنر چرخ عقب Foton Ollin 65.115
OEM Code : 01160929200067
Pproduct introduction

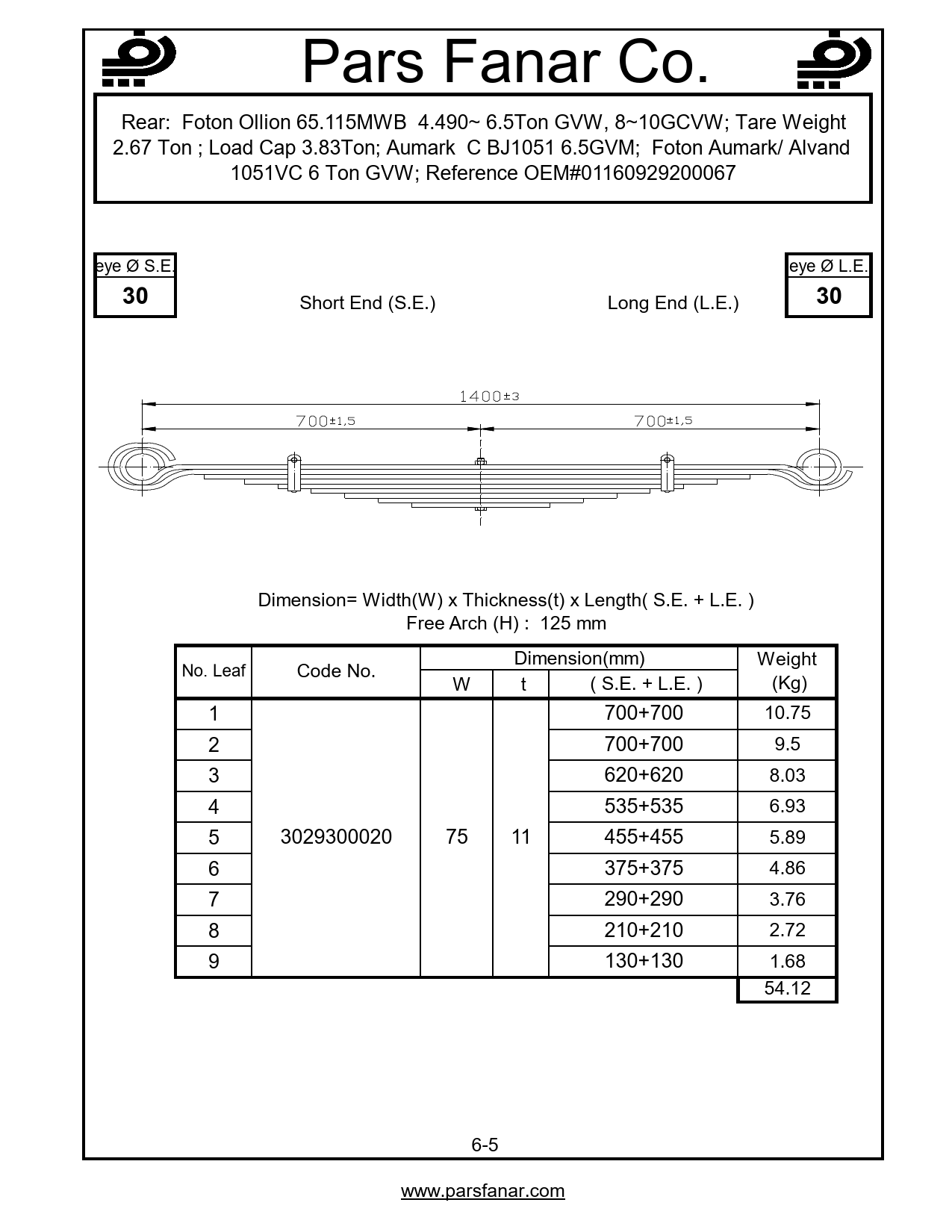

Rear: Foton Ollin 65.115MWB 4.490~ 6.5Ton GVW, 8~10GCVW; Tare Weight 2.67 Ton ; Load Cap 3.83Ton; Aumark C BJ1051 6.5GVM; Foton Aumark/ Alvand 1051VC 6 Ton GVW
Reference OEM#01160929200067
Special properties
Technical Specifications
| Vehicle type | |
|---|---|
| Installation location | |
| OEM code | |
| Width (W) of flat spring | |
| Thickness (T) of flat spring | |
| The number of main layers (M) of the flat spring | |
| The length of the short edge (SE) of the flat spring | |
| The length of the long edge (LE) of the flat spring | |
| The eye diameter of the short edge of the flat spring | |
| The eye diameter of the long edge of the flat spring | |
| Free arc (H) flat spring | 125 |
| Name of the vehicle/cabin/trailer |
