دست فنر چرخ عقب Hendrickson
OEM Code : 47057, 58847
Pproduct introduction

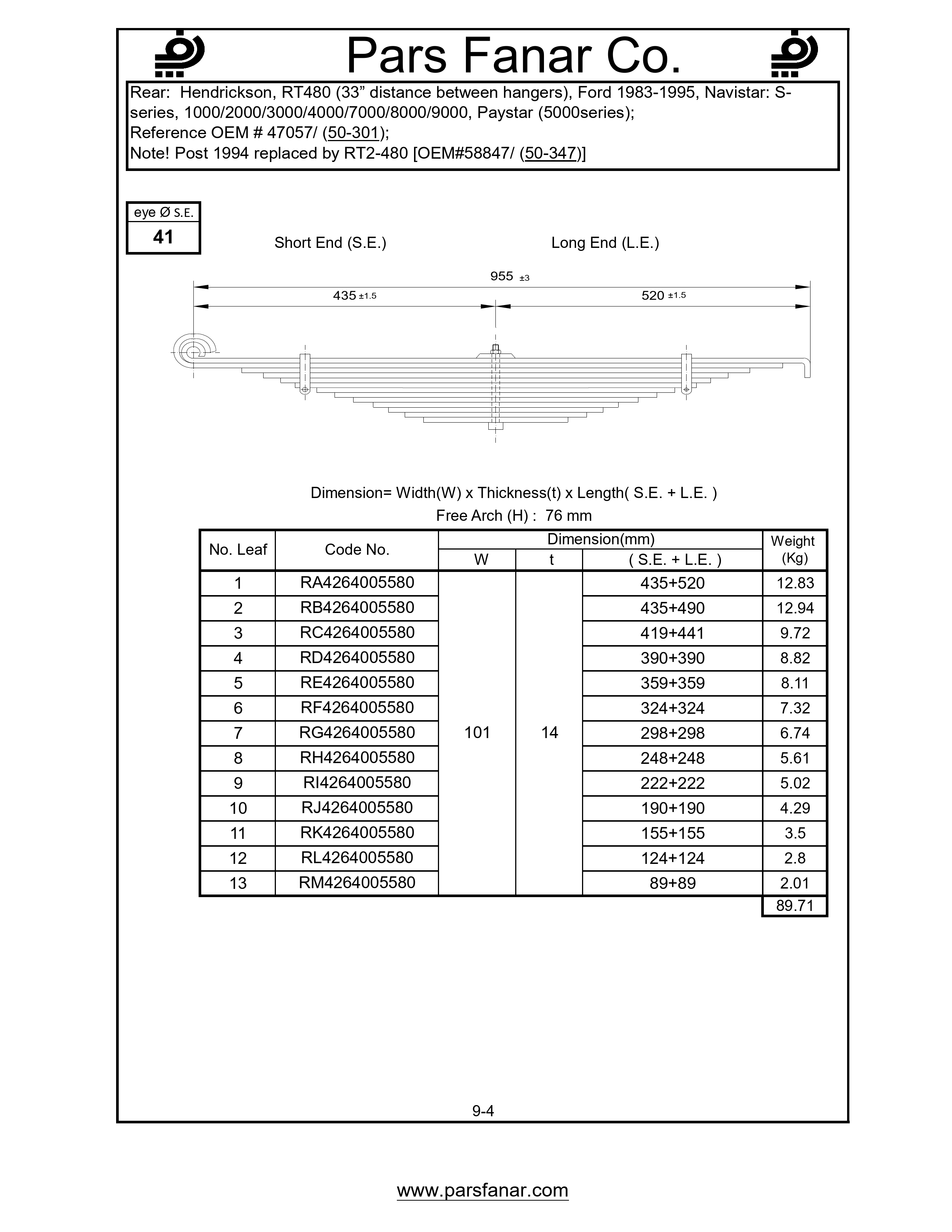

Rear: Hendrickson, RT480 (33” distance between hangers), Ford 1983-1995, Navistar: S-series, 1000/2000/3000/4000/7000/8000/9000, Paystar (5000series)
Reference OEM # 47057/ (50-301)
Note! Post 1994 replaced by RT2-480 [OEM#58847/ (50-347)]
Special properties
Technical Specifications
| Vehicle type | |
|---|---|
| Installation location | |
| OEM code | |
| Aftermarket code | 50-301, 50-347 |
| Width (W) of flat spring | |
| Thickness (T) of flat spring | |
| The number of main layers (M) of the flat spring | |
| The length of the short edge (SE) of the flat spring | |
| The length of the long edge (LE) of the flat spring | |
| The eye diameter of the short edge of the flat spring | |
| Free arc (H) flat spring | 76 |
| Name of the vehicle/cabin/trailer | 1000/2000/3000/4000/7000/8000/9000, Ford 1983-1995, Harvester Paystar (5000series), Hendrickson, Navistar S-series, RT480 |
