دست فنر چرخ عقب Hendrickson
OEM Code : 45027, 58179000
Pproduct introduction

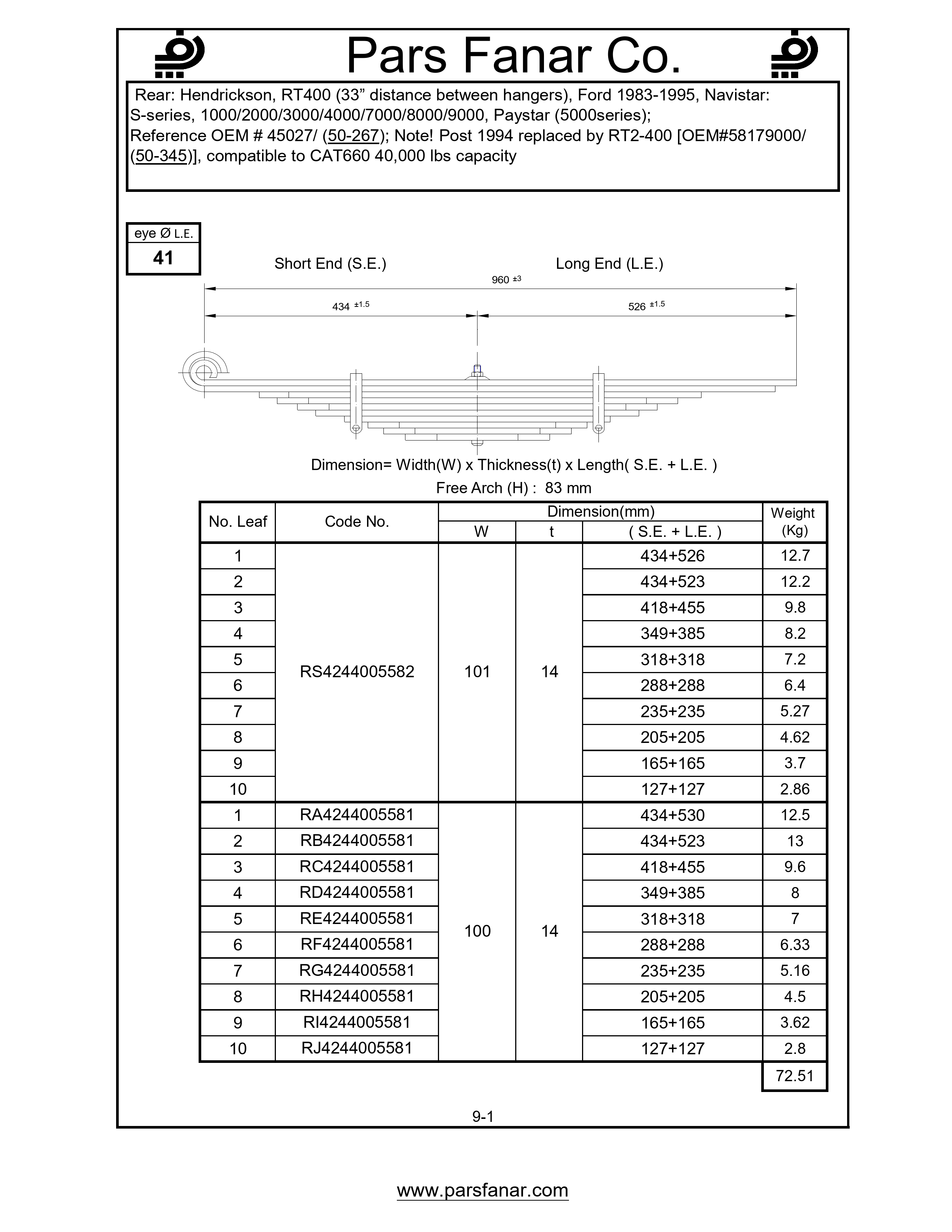

Rear: Hendrickson, RT400 (33” distance between hangers), Ford 1983-1995, Navistar: S-series, 1000/2000/3000/4000/7000/8000/9000, Paystar (5000series)
Reference OEM # 45027/ (50-267); Note! Post 1994 replaced by RT2-400 [OEM#58179000/ (50-345)] compatible to CAT660 40,000 lbs capacity
Special properties
Technical Specifications
| Vehicle type | |
|---|---|
| Installation location | |
| OEM code | |
| Aftermarket code | 50-267, 50-345 |
| Width (W) of flat spring | |
| Thickness (T) of flat spring | |
| The number of main layers (M) of the flat spring | |
| The length of the short edge (SE) of the flat spring | |
| The length of the long edge (LE) of the flat spring | |
| The eye diameter of the long edge of the flat spring | |
| Free arc (H) flat spring | 83 |
| Name of the vehicle/cabin/trailer | 1000/2000/3000/4000/7000/8000/9000, Ford 1983-1995, Harvester Paystar (5000series), Hendrickson, Navistar S-series, RT400 |
