دست فنر چرخ عقب Hyundai و Mitsubishi
OEM Code : 551004A200, 551004A650
Pproduct introduction
Rear; Hyundai H-1/ H200/Libero (truck)/ Satellite/ Starex (1997-2007); JAC Refine MPV/ Refine I/ Refine M1/ Ruifeng M (2002-2016); DongFeng Future M3 (2007–12)/ Future V3 (2010–present)/ Future M5 (2012–present); Dongfeng Fengxing Lingzhi M3/ M3L/ M5/ M5/ V3/ V3L (2001-Present); Mitsubishi L400/ Space Gear/ Starwagon (Australia)/ Delica (1994-2007); Soueast Delica Taiwan (1994-2007)
Reference OEM# 551004A200/ 551004A650
Special properties

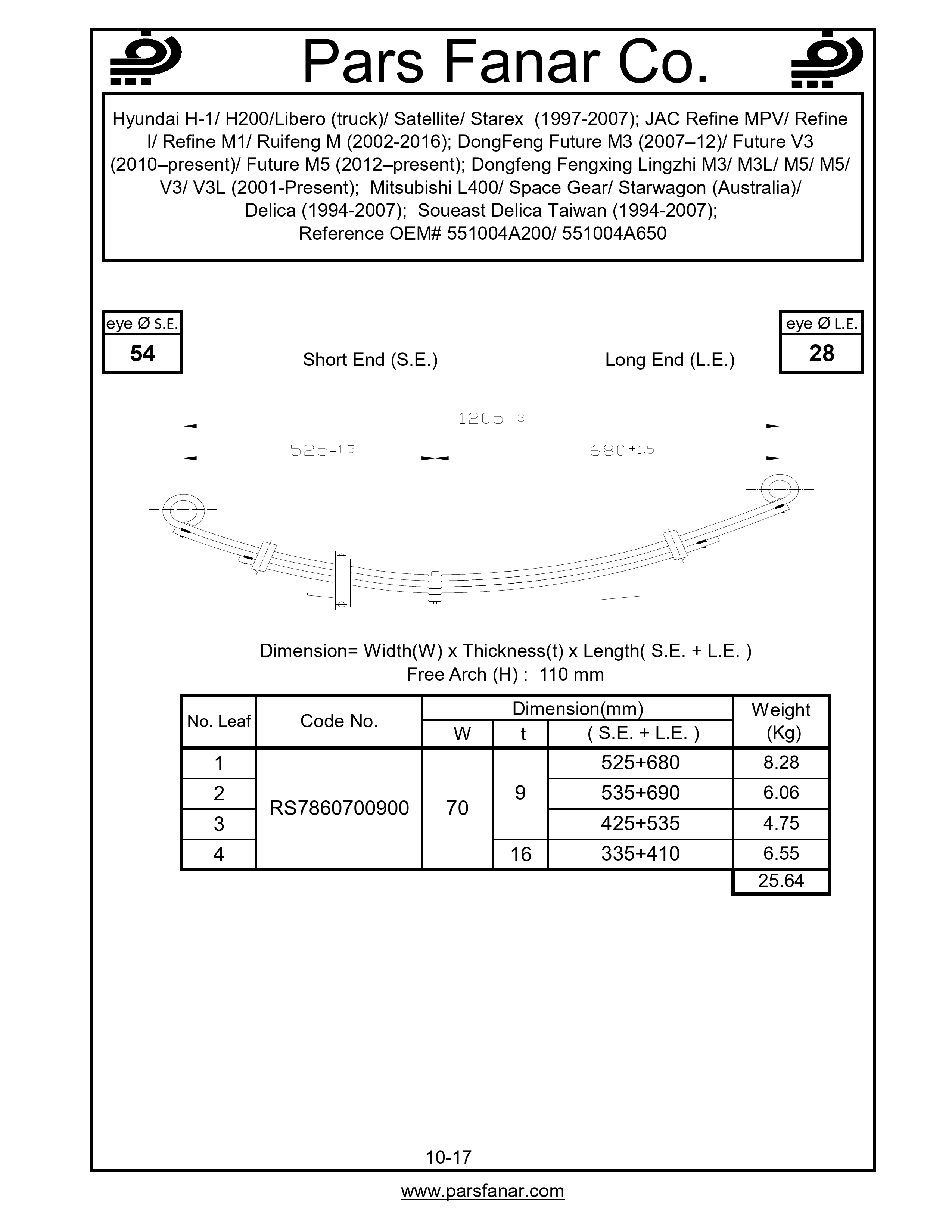

Technical Specifications
| Vehicle type | |
|---|---|
| Installation location | |
| OEM code | |
| Width (W) of flat spring | |
| Thickness (T) of flat spring | |
| The number of main layers (M) of the flat spring | |
| The length of the short edge (SE) of the flat spring | |
| The length of the long edge (LE) of the flat spring | |
| The eye diameter of the short edge of the flat spring | |
| The eye diameter of the long edge of the flat spring | |
| Free arc (H) flat spring | 110 |
| Name of the vehicle/cabin/trailer | Dongfeng Fengxing Lingzhi M3/ M3L/ M5/ M5/ V3/ V3L, DongFeng Future M3 (2007–12), DongFeng Future M5 (2012–present), DongFeng Future V3 (2010–present), Hyundai H-1, Hyundai H200, Hyundai Libero (truck), Hyundai Satellite, Hyundai Starex, JAC Refine I, JAC Refine M1, JAC Refine MPV, JAC Ruifeng M, Mitsubishi Delica, Mitsubishi L400, Mitsubishi Space Gear, Mitsubishi Starwagon (Australia), Soueast Delica Taiwan |
