دست فنر چرخ عقب International Paystar

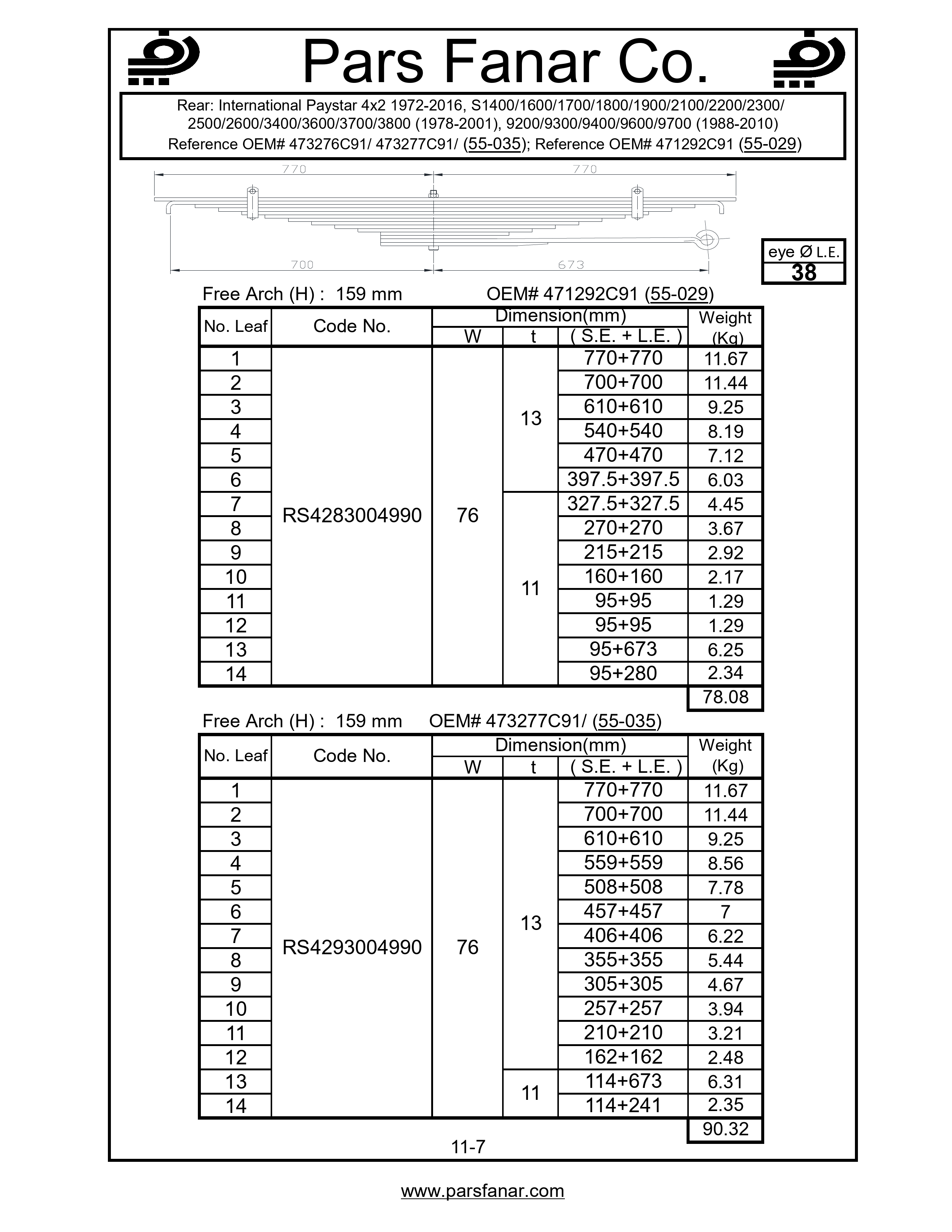

OEM Code : 471292C91, 473276C91, 473277C91
Pproduct introduction
Rear: International Paystar 4×2 1972-2016, S1400/1600/1700/1800/1900/2100/2200/2300/ 2500/2600/3400/3600/3700/3800 (1978-2001), 9200/9300/9400/9600/9700 (1988-2010)
Reference OEM# 473276C91/ 473277C91/ (55-035)
Reference OEM# 471292C91 (55-029)
Special properties
Technical Specifications
| Vehicle type | |
|---|---|
| Installation location | |
| OEM code | |
| Aftermarket code | 55-029, 55-035 |
| Width (W) of flat spring | |
| Thickness (T) of flat spring | |
| The number of main layers (M) of the flat spring | |
| The length of the short edge (SE) of the flat spring | |
| The length of the long edge (LE) of the flat spring | |
| The eye diameter of the long edge of the flat spring | |
| Free arc (H) flat spring | 159 |
| Name of the vehicle/cabin/trailer | 9200/9300/9400/9600/9700 (1988-2010), International Paystar 4×2 1972-2016, S1400/1600/1700/1800/1900/2100/2200/2300/ 2500/2600/3400/3600/3700/3800 (1978-2001) |
Related brands
Product catalog
