دست فنر چرخ عقب IVECO 50.9/60.11/65.12/79.14
OEM Code : 8591446, 8591447
Pproduct introduction

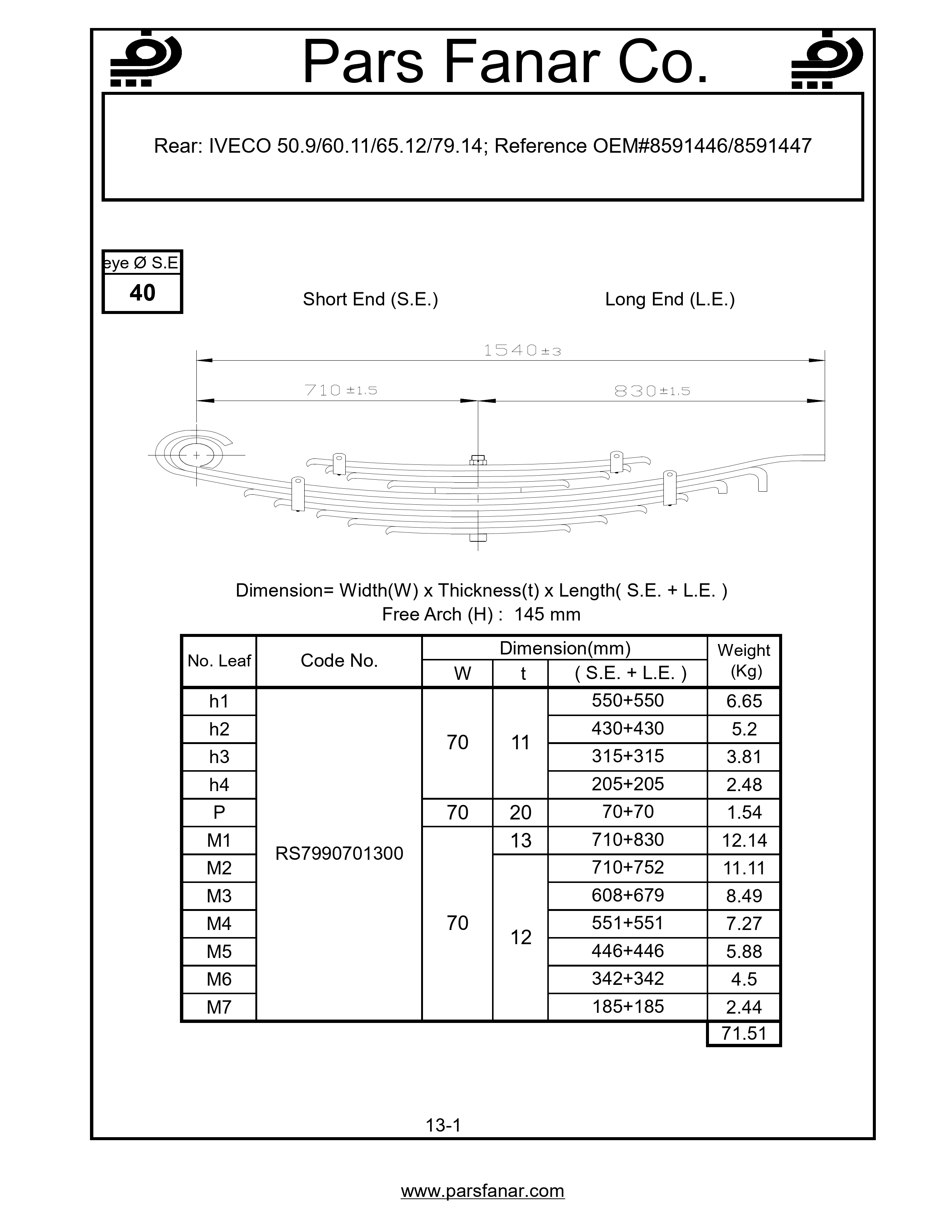

Rear: IVECO 50.9/60.11/65.12/79.14
Reference OEM#8591446/8591447
Special properties
Technical Specifications
| Vehicle type | |
|---|---|
| Installation location | |
| OEM code | |
| Width (W) of flat spring | |
| Thickness (T) of flat spring | |
| The number of main layers (M) of the flat spring | |
| The number of auxiliary layers (H) of the flat spring | |
| The length of the short edge (SE) of the flat spring | |
| The length of the long edge (LE) of the flat spring | |
| The eye diameter of the short edge of the flat spring | |
| Free arc (H) flat spring | 145 |
| Name of the vehicle/cabin/trailer |
