دست فنر چرخ عقب Mercedes Benz
OEM Code : 2D0511131F, 2D0511131P, 5118621AA, 904320050, 9043201606, 9043201806, 9043201906
Pproduct introduction

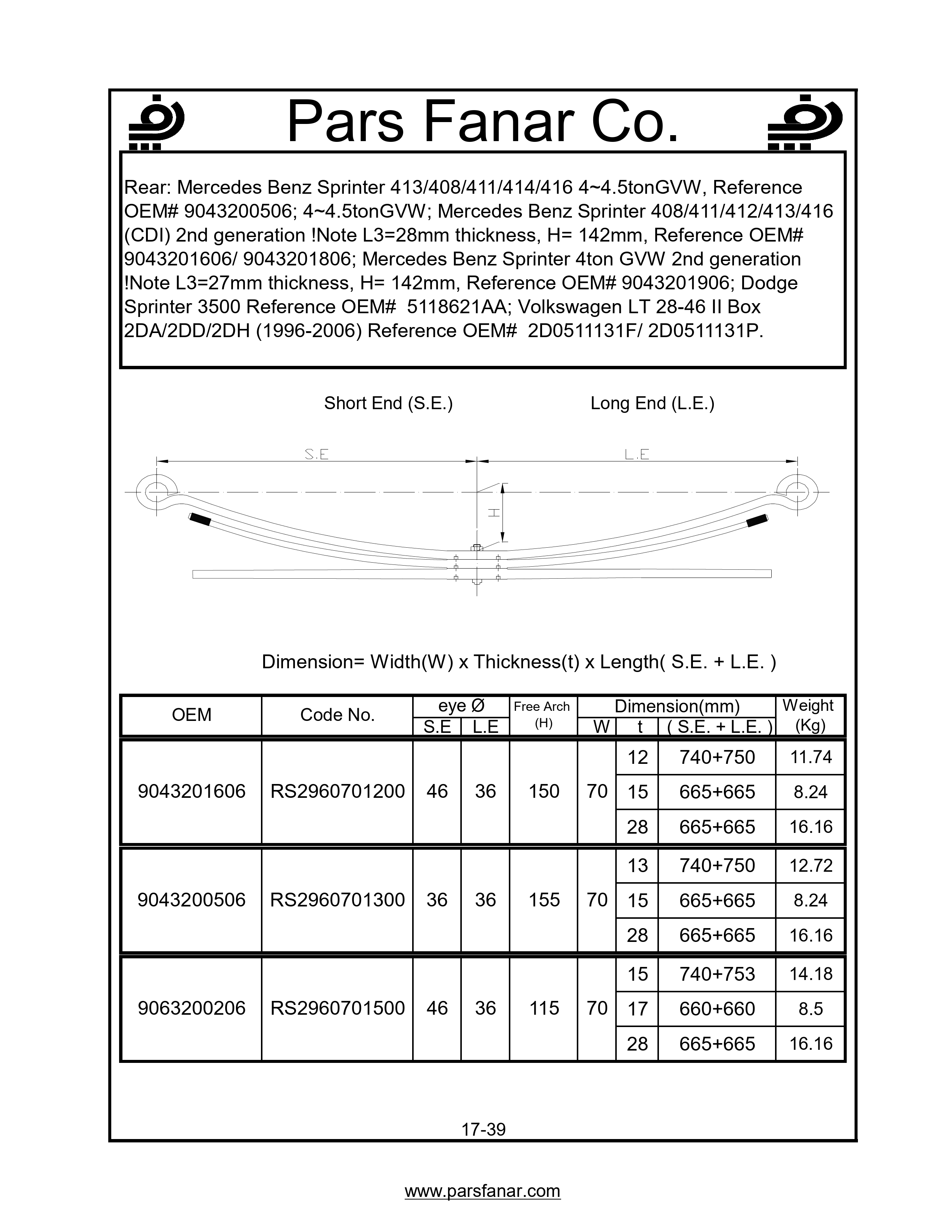

Rear: Mercedes Benz Sprinter 413/408/411/414/416 4~4.5tonGVW
Reference OEM# 9043200506; 4~4.5tonGVW
Mercedes Benz Sprinter 408/411/412/413/416 (CDI) 2nd generation
Note: L3=28mm thickness, H= 142mm
Reference OEM# 9043201606/ 9043201806
Mercedes Benz Sprinter 4ton GVW 2nd generation
Note: L3=27mm thickness, H= 142mm
Reference OEM# 9043201906
Dodge Sprinter 3500
Reference OEM# 5118621AA
Volkswagen LT 28-46 II Box 2DA/2DD/2DH (1996-2006)
Reference OEM# 2D0511131F/ 2D0511131P
Special properties
Technical Specifications
| Vehicle type | |
|---|---|
| Installation location | |
| OEM code | 2D0511131F, 2D0511131P, 5118621AA, 904320050, 9043201606, 9043201806, 9043201906 |
| Width (W) of flat spring | |
| Thickness (T) of flat spring | |
| The number of main layers (M) of the flat spring | |
| The length of the short edge (SE) of the flat spring | |
| The length of the long edge (LE) of the flat spring | |
| The eye diameter of the short edge of the flat spring | |
| The eye diameter of the long edge of the flat spring | |
| Free arc (H) flat spring | 150 |
| Name of the vehicle/cabin/trailer | Dodge Sprinter 3500, Mercedes Benz Sprinter 408/411/412/413/416 (CDI) 2nd generation, Mercedes Benz Sprinter 413/408/411/414/416 4~4.5tonGVW, Mercedes Benz Sprinter 4ton GVW 2nd generation, Volkswagen LT 28-46 II Box 2DA/2DD/2DH (1996-2006) |
