دست فنر چرخ عقب Toyota Land Cruiser
OEM Code : 48210-60721
Pproduct introduction

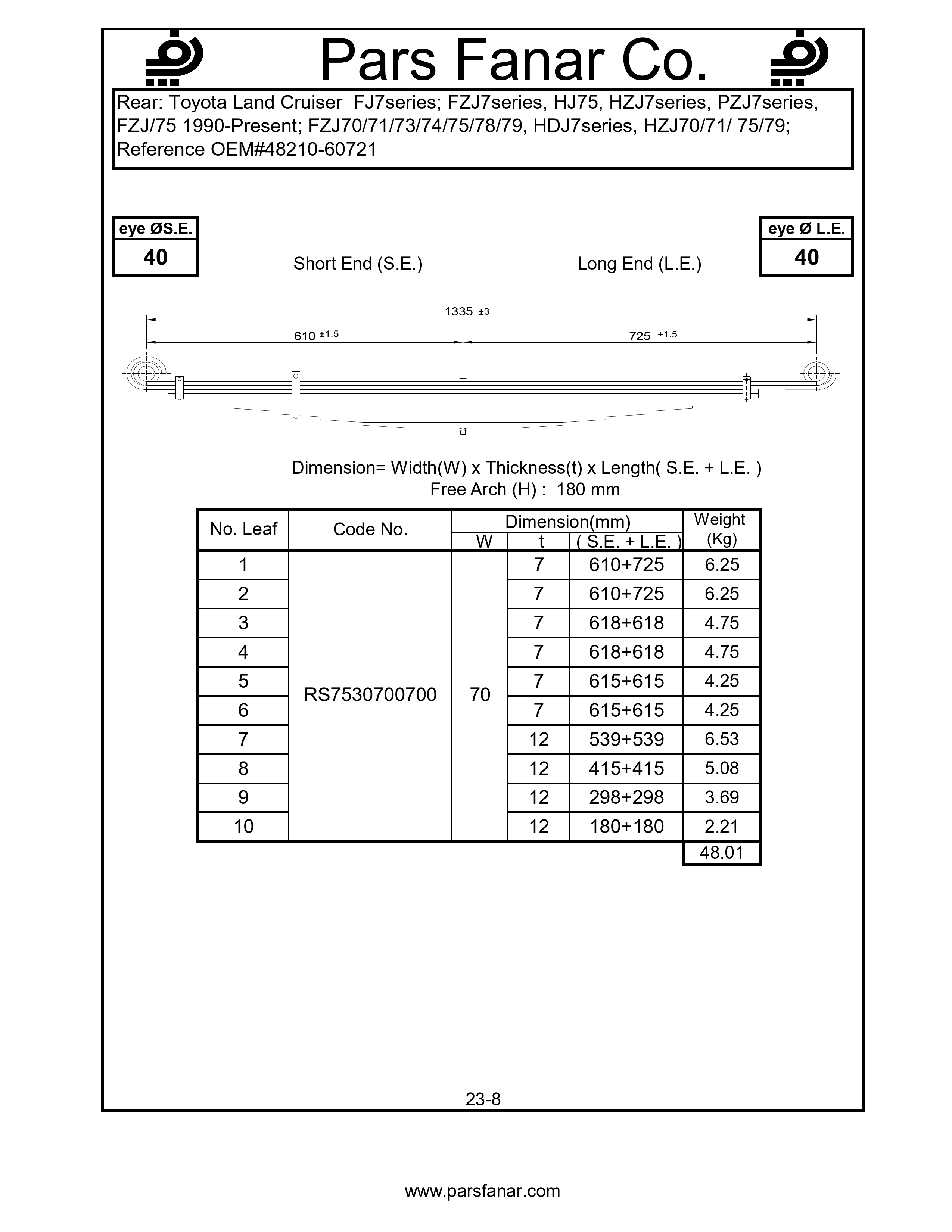

Rear: Toyota Land Cruiser FJ7series; FZJ7series, HJ75, HZJ7series, PZJ7series, FZJ/75 1990-Present; FZJ70/71/73/74/75/78/79, HDJ7series, HZJ70/71/ 75/79
Reference OEM#48210-60721
Special properties
Technical Specifications
| Vehicle type | |
|---|---|
| Installation location | |
| OEM code | |
| Width (W) of flat spring | |
| Thickness (T) of flat spring | |
| The number of main layers (M) of the flat spring | |
| The length of the short edge (SE) of the flat spring | |
| The length of the long edge (LE) of the flat spring | |
| The eye diameter of the short edge of the flat spring | |
| The eye diameter of the long edge of the flat spring | |
| Free arc (H) flat spring | 180 |
| Name of the vehicle/cabin/trailer | FZJ/75 1990-Present; FZJ70/71/73/74/75/78/79, HDJ7series, HJ75, HZJ70/71/ 75/79, HZJ7series, PZJ7series, Toyota Land Cruiser FJ7series; FZJ7series |
