دست فنر چرخ عقب Toyota Land Cruiser
OEM Code : 48210-60120, 48210-60121, 48210-60200, 48210-60550, 48210-60551, BJ42LV, BJ70LV
Pproduct introduction

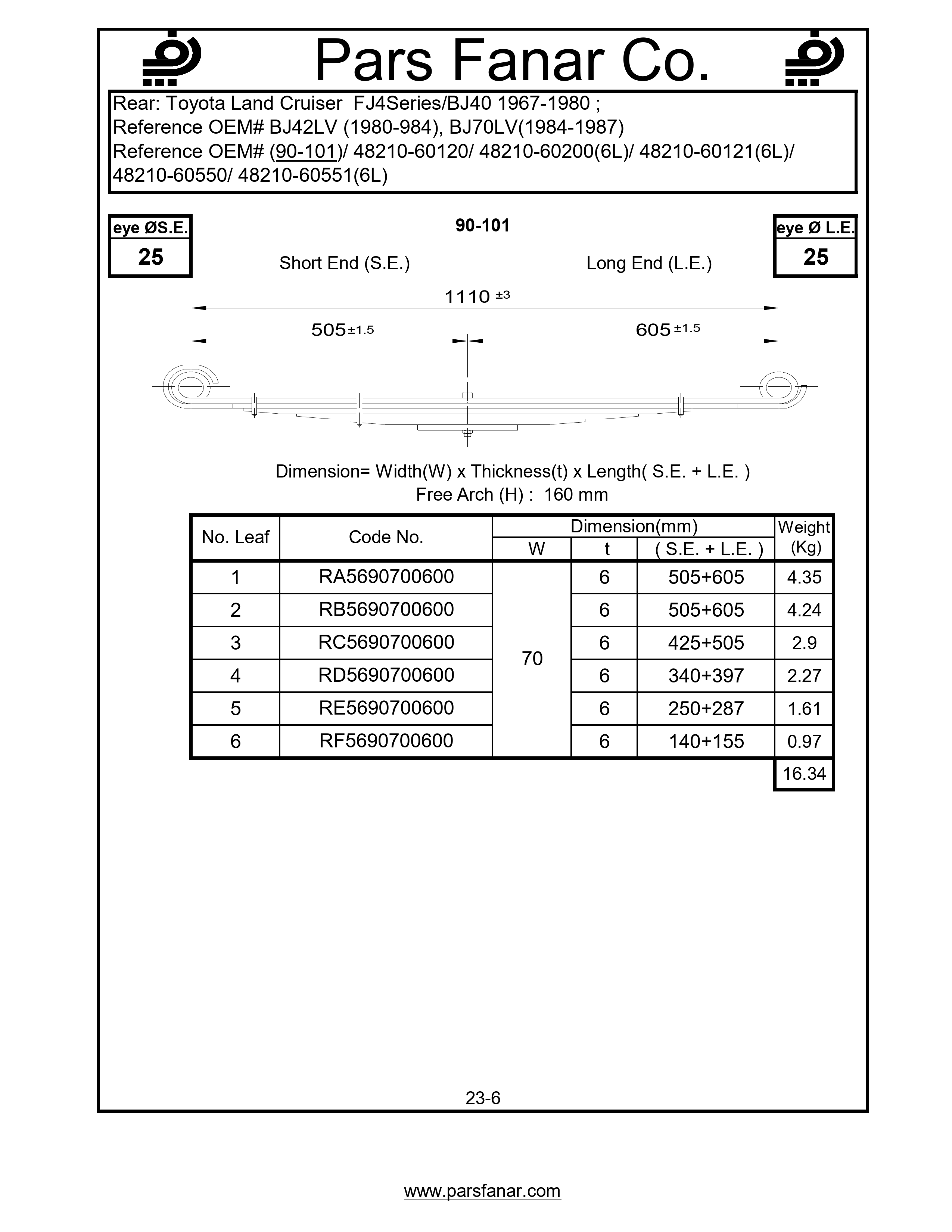

Rear: Toyota Land Cruiser FJ4Series/BJ40 1967-1980
Reference OEM# BJ42LV (1980-984), BJ70LV(1984-1987)
Reference OEM# (90-101)/ 48210-60120/ 48210-60200(6L)/ 48210-60121(6L)/ 48210-60550/ 48210-60551(6L)
Special properties
Technical Specifications
| Vehicle type | |
|---|---|
| Installation location | |
| OEM code | 48210-60120, 48210-60121, 48210-60200, 48210-60550, 48210-60551, BJ42LV, BJ70LV |
| Aftermarket code | 1980-984, 1984-1987, 90-101 |
| Width (W) of flat spring | |
| Thickness (T) of flat spring | |
| The number of main layers (M) of the flat spring | |
| The length of the short edge (SE) of the flat spring | |
| The length of the long edge (LE) of the flat spring | |
| The eye diameter of the short edge of the flat spring | |
| The eye diameter of the long edge of the flat spring | |
| Free arc (H) flat spring | 160 |
| Name of the vehicle/cabin/trailer |
